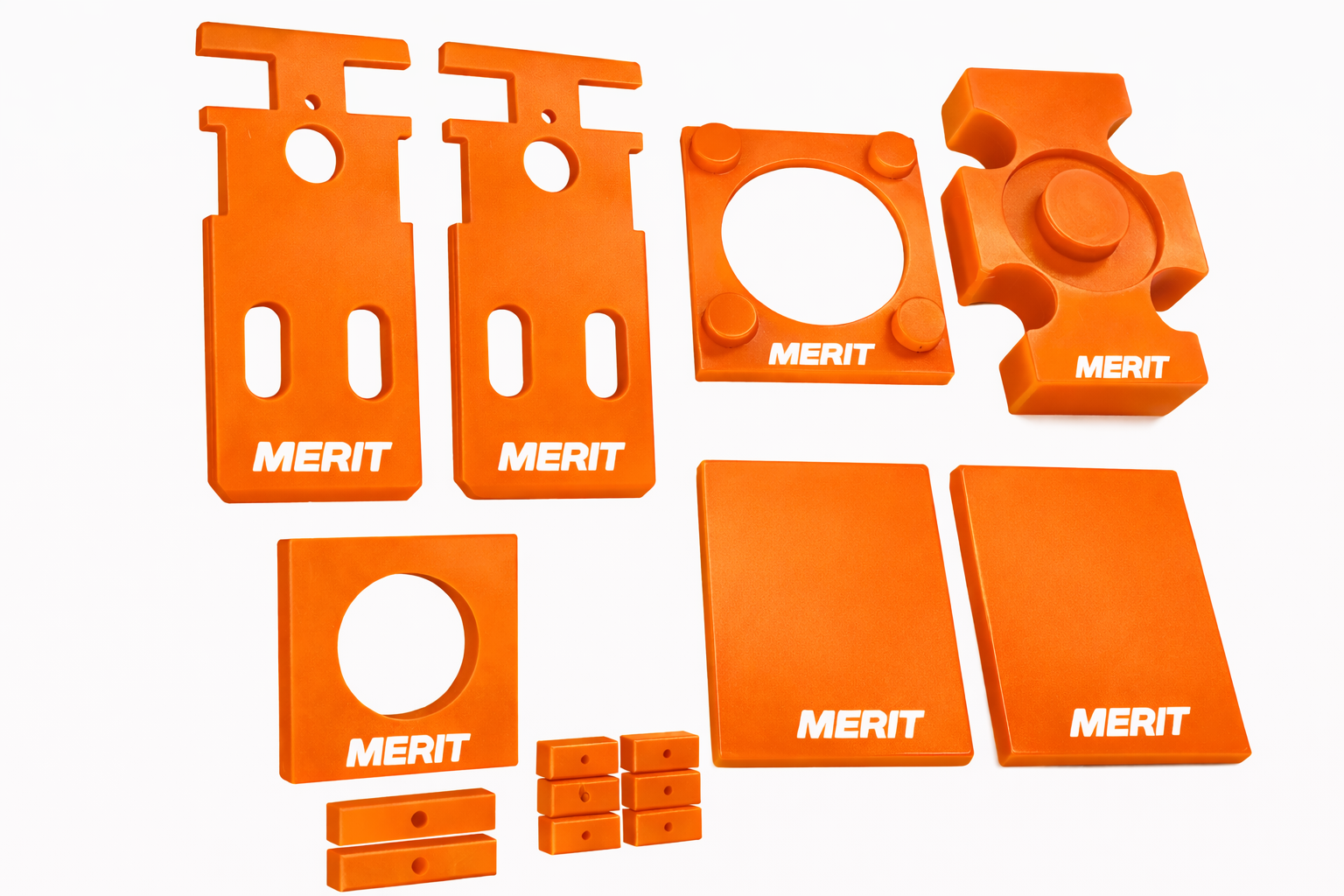

MERIT fournit les pièces suivantes :
3361 8522 35 – Patin élastique (Elastic Pad)
3361 8522 37 – Amortisseur (Shock Absorber)
3362 2696 31 – Plaque de guidage (Guide Plate)
3361 8519 23 – Manchon antipoussière (Dust Sleeve)
3362 2697 31 – Plaque de guidage (Guide Plate)
Ces composants sont disponibles auprès de MERIT pour les applications de brise-roches hydrauliques et garantissent une compatibilité précise ainsi qu’une haute résistance à l’usure.
• 3361 3542 57: Moil point universal tool
• 3363 0350 45: Flat chisel cross-cut
• 3362 2656 77: Blunt steel
• 3363 0660 65: Chisel paste for ContiLube® II
• 3363 0345 67: Manual grease gun for chisel paste
• 3362 2622 57: Adapter kit for underwater applications
Percussion Unit Components
• 3361 8546 33 / 3362 2635 06: Cylinder cover (with sub-parts)
• 3362 2648 77 / 3362 2648 79: Cylinder
• 3361 3542 47 / 3361 3542 49: Percussion piston
• 3360 9236 75 / 3360 9236 35: Seal bush
• 3363 0701 41: Lower hammer part
• 3360 9236 51: Tensioning bolt
• 3360 9236 53: Ring
• 3360 9236 55: Washer
• 3360 9165 63: Hexagonal nut
• 3360 9165 61: Nut
• 3361 0319 12: O-ring
• 3361 8505 29: Back-up ring
• 3363 0695 85: Pressure accumulator
• 3361 3337 03: Lock washer
• 3363 0344 81: Hexagonal socket head screw
• 3360 9956 65 / 3360 4781 90: Male screw connection
• 3361 3534 88 / 3361 3534 87: Screw cap for pipe
• 3363 0872 86: Filling valve
• 3360 1751 25: O-ring
• 3361 8546 57: Connection screw
• 3360 4781 71: O-ring
• 3360 1171 31: Sealring
• 3360 1135 63: Screw plug
• 3361 8545 11: Non-return valve
• 3360 4786 04: O-ring
• 3360 4788 85: O-ring
• 3361 0319 15: Treaded insert
• 3363 0666 61: Stripper
• 3362 2675 87: Seal
• 3362 2675 85: Seal
• 3362 2675 82: Seal
• 3361 8546 35 / 3362 2643 03: Cylinder cover
• 3360 9236 59: Control slide valve
• 3360 3144 56: O-ring
• 3362 2619 50: Cover
• 3360 1037 66: Hexagonal socket head screw
• 3360 4354 29: Pressure spring
• 3360 9236 65: Valve bush
• 3362 2681 91: Valve piston
• 3360 3143 65: O-ring
• 3361 8546 53: Screw plug
• 3360 9209 30 / 3360 9209 29: Slide ring seal
• 3360 9209 32 / 3360 3280 53: O-ring
• 3360 9209 35 / 3360 9209 34: Seal ring
• 3360 9236 77 / 3360 9236 37: Seal bush
• 3360 9930 29: Retaining bar
• 3362 2618 50: Locking pin
• 3361 8543 63: Locking bush
• 3362 2629 25: Sealing plug
• 3360 4784 26: Screw plug
• 3363 0690 73: Buffer ring
• 3363 0693 47: Wear bush
• 3361 0319 90: O-ring
• 3363 0669 63: Screw plug
• 3360 3145 51: O-ring
• 3360 9211 79: Dowel pin
• 3360 4337 74: Lubrication nipple
• 3362 2627 15 / 13 / 17 / 19: Male screw connection
• 3363 0340 03: Slide ring seal
• 3360 9953 38: Dust cap
• 3360 9235 09: Spacer sleeve
• 3362 2616 47: Diaphragm
• 3363 0340 00 / 3363 0340 01: Set of seals
Hammer Box (Housing) Components
• 3362 2696 15: Hammer box
• 3361 8522 35: Elastic pad
• 3361 8522 37: Shock absorber
• 3362 2696 31: Guide plate
• 3361 8519 23: Dust sleeve
• 3362 2620 93: Transport safety device
• 3360 0268 83: Hexagonal socket head screw
• 3361 8507 47: Lock washer
• 3360 1032 54: Hexagonal nut
• 3362 2697 31: Guide plate
• 3362 2678 06: CE nameplate
• 3363 0314 48: Set of plastic parts
• 3362 2679 04: Cover plate (Version V)
• 3362 2679 97: Cover plate (Version V)
• 3362 2679 98: Cover plate (Version V)
• 3362 2678 94: Sealing plug (Version V)
• 3362 2678 97: Sealing plug (Version V)
• 3360 4382 10: Hexagonal socket head screw (Version V)
Lubricating Connection Kits
• 3363 0312 22: Lubricating Kit HM 720 Eco (V)
• 3362 2698 57: Adapter for lubricating nipple
• 3363 0662 33: Swivel screw connection
• 3362 3281 38: Hexagon nut
• 3363 0662 31: Grease Line
• 3360 4337 74: Tapered lubricating nipple
• 3361 0316 66: Loctite 243
• 3363 0852 50: Adapter kit for ContiLube® II
• 3363 0673 95: Cover plate for ContiLube® II
• 3362 3284 80: Hexagonal socket head screw
• 3360 1037 50: Hexagonal socket head screw
• 3361 8505 96: Lock washer
• 3363 0669 51: Seal ring
• 3363 0668 87: Screw coupling
• 3363 0838 76: Grease Line
• 3363 0662 00: Screw plug
• 3363 0687 45: Screw coupling
• 3363 0662 34: Swivel screw coupling
• 3363 0838 79: Hydraulic hose
