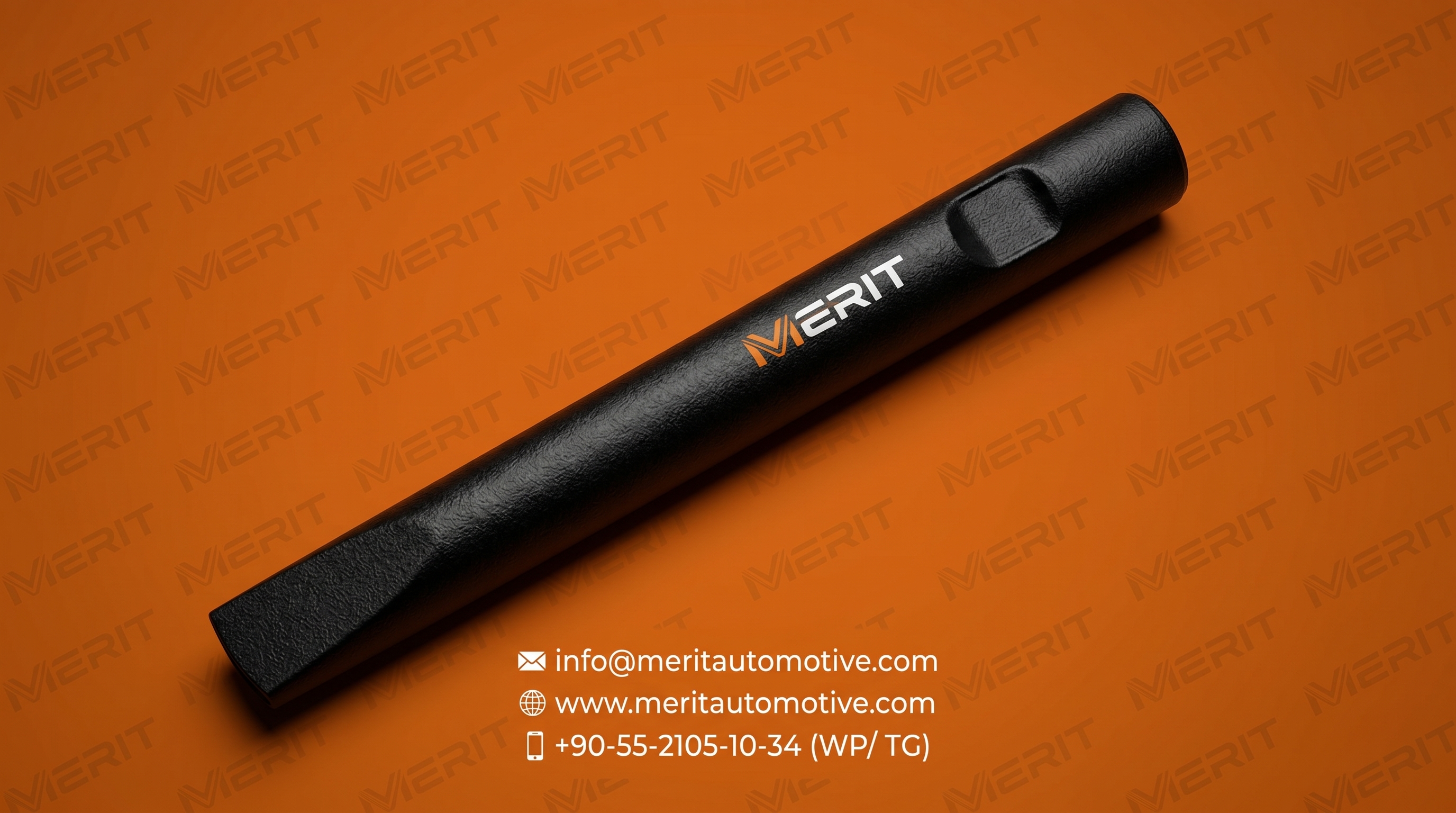

Merit-manufactured breaker chisel for Rammer 5011E hydraulic hammers. Engineered to OEM-level standards, this chisel delivers exceptional impact performance and durability in the most demanding demolition, trenching, and rock breaking applications. Precision-machined from high-strength alloy steel, it ensures a direct fit for the Rammer 5011E breaker with no modifications required.
- Diameter: 190 mm
- Length: 1560 mm
- Fits: Rammer 5011E Hydraulic Breaker
- Manufacturer: Merit
Built to withstand high-frequency impact cycles while maintaining structural integrity, this chisel is the reliable choice for contractors and equipment operators who demand consistent performance on the job site.
📩 Contact us for pricing and availability. Fast worldwide shipping.
Rammer BR 5011 Spare Parts List
Complete OEM-compatible spare parts for Rammer BR 5011 hydraulic breaker. All parts are precision-manufactured to ensure direct fit and optimal performance.
| No | Part Number | Part Name |
|---|---|---|
| 1 | 171139 | Lower Tool Bushing |
| 2 | 168295 | Upper Tool Bushing |
| 3 | 168283 | Thrust Ring |
| 4 | 168595 | Tie Rod Kit |
| 5 | 168588 | Vibration Damping Element |
| 6 | 952009 | Cable Tie |
| 7 | 168589 | Lock Plate |
| 8 | 168593 | Rubber Ring |
| 9 | 168297 | Tool Retaining Pin |
| 10 | 168298 | Retaining Pin |
| 11 | 168564 | Piston |
| 12 | 168232 | Buffer |
| 13 | 168228 | Pad |
| 14 | 171044 | Wear Plate |
| 15 | 168280 | Seal |
| 16 | 168291 | Membrane |
| 17 | 168591 | Accumulator Screw |
| 18 | 170948 | Seal Set |
| 19 | K15011 | Service Kit |
| 20 | K2A5011 | Service Kit |
| 21 | 171140 | Front Head |
| 22 | 50111 | Chisel |
| 23 | 50113 | Moil Point |
| 24 | 50114 | Blunt |
| 25 | 50113K3 | Pyramid |
| 26 | 50111A2 | Hard Rock Chisel |
| 27 | 50111F3 | Limestone Chisel |
| 28 | 50114T2 | Super Blunt |
Rammer BR 7013 Spare Parts List
Complete OEM-compatible spare parts for Rammer BR 7013 hydraulic breaker. All parts are precision-manufactured to ensure direct fit and optimal performance.
| No | Part Number | Part Name |
|---|---|---|
| 1 | 105328 | Lower Tool Bushing |
| 2 | 300316 | Upper Tool Bushing |
| 3 | 300052 | Thrust Ring |
| 4 | 105726 | Tie Rod Kit |
| 5 | 400040 | Tool Retaining Pin |
| 6 | 400416 | Retaining Pin |
| 7 | 105669 | Piston |
| 8 | 105259 | Wear Plate |
| 9 | 105260 | Wear Plate |
| 10 | 168280 | Seal |
| 11 | 21035 | Membrane |
| 12 | 106893 | Seal Set |
| 13 | 131 | Cross Chisel Tool |
| 14 | 134 | Blunt Tool |
| 15 | K10130 | Service Kit |
