Montabert 86582020 Onderste huls Merit | Rammer Epiroc Krupp Atlas Copco Hydraulic Breaker Parts

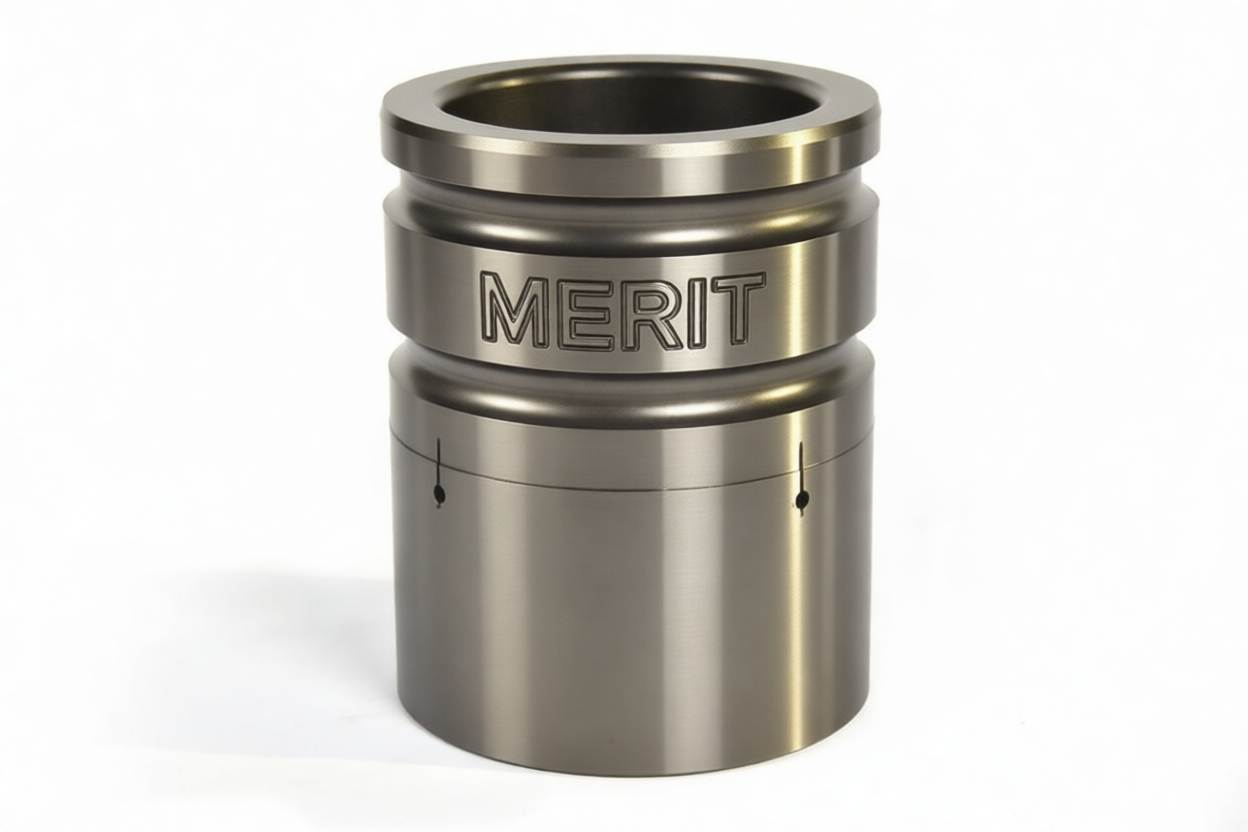

Montabert 86582020 Onderste hul is een hoogwaardig precisieonderdeel dat maximale duurzaamheid en stabiliteit biedt voor hydraulische sloophamers.

Montabert 86582020 Onderste hul Technische Specificaties

Lengte: 207 mm
Diameter: 165 mm
Voorste geleider diameter: 165 mm
Puntdiameter: 122 mm
Gewicht: 15 kg

Montabert 86582020 Onderste hul Kwaliteit en Prestatie

Deze onderste hul is vervaardigd uit premium gelegeerd staal en is ontworpen om extreme slijtage te weerstaan tijdens zware industriële toepassingen. Dankzij nauwkeurige bewerking en warmtebehandeling zorgt het onderdeel voor perfecte uitlijning, minimale wrijving en een langere levensduur van de sloophamer.
Het product biedt consistente prestaties in veeleisende omstandigheden zoals sloop-, constructie- en mijnbouwprojecten.

Elke component wordt onderworpen aan strikte kwaliteits- en maatcontrole, zodat compatibiliteit en optimale werking met Montabert-modellen gewaarborgd zijn.

Rock Breaker Assembly (10.1)

Inflating screw – 86265048
Ring – 86241403
UNF 3/4”, socket head screw – 86410461
Upper flange – 86363215
Diaphragm kit – 86633906
Lower flange – 86618493
Nylon ring – 86447356
O’ring – 86268786
Threaded plug – 86419280
O’ring – 86349883
Shim – 86223542
Spring stop – 86419298
Spring – 86419272
Slide – 86404308
Knee piece 1”1/4 NPTF – 86314952
Threaded plug – 86386885
O’ring – 86228970
Threaded plug – 86419603

Back Head Assembly (10.2)

Threaded plug – 86719200
O’ring – 86349883
Lip seal – 86375193
Slide – 86404332
Knee piece 1”1/4 NPTF – 86314952
Threaded plug – 86386885
O’ring – 86228970
Threaded plug – 86419603
Back head – 86589561
Helicoil thread UNF 1” – 86256005
Liner – 86404290
Snap ring – 86223872
Distribution box – 86447216
O’ring – 86390879
Distributor – 86628187
O’ring – 86447182
Valve – 86447315
Spring – 86415239
Spring guide – 86617826
O’ring – 86490687

Cylinder & Pistons (10.3)

Upper liner – 86474657
Overpressure valve – 86447257
Liner – 86447224
O’ring – 86400413
Slide – 86447232
Pin – 86350006
Complete thrust piston guide – 86564952
Slide – 86447273
Plug – 86447281
Thrust piston – 86447208
Strike piston – 86419595
Pin – 86350014
Spacer – 86581105
O’ring – 86280286
Tight seal – 86352481
Pin – 86350014
Cylinder – 86581113
Shank thrust – 86420742
Lip seal – 86487139
Plug – 86512621

Front Guide Assembly (10.4)

Pin – 86350014
Complete front guide – 86717949
Ball seat – 86606951
Ball – 86285343
Spring guide – 86477171
Spring – 86353547
Upper chuck bushing – 86447349
Lower chuck bushing – 86582020
Plug – 86504198
Pin – 86447372
Snap ring – 86352671
Elastic pin – 86220639
Lock – 86352697
Spring guide – 86378452
Spring – 86355773
Plug – 86378437
Retaining pin – 86610805
Plastic plug – 86358504
Assembling bolt – 86447380
Nut – 86603933
SEAL PACKAGE – 86622677

Lubrication System (10.5)

Knee piece screw – 86231644
Lip seal – 86238466
Knee piece – 86355500
Tight seal – 86352481
Adapter – 86450798
Hose – 86374444
Threaded plug – 86355518
Oiler – 86655354
Grease pump – 86261328
Grease cartridge – 86476314

Standard Housing (10.6)

Housing – 86581238
Guiding slipper – 86609153
Guiding slipper – 86654399
Washer – 86634086
UNF 1”, hexa. screw – 86634821
Hoisting ring – 86603180
Helicoil thread UNF 5/8” – 86249067
Plastic plug – 86614039

Suspension & Mounting (10.7, 10.12)

UNF 1”, hexa. screw – 86576394
Washer – 86634086
Nut – 86510005
Shock absorber – 86629052
Bar – 86629060
Plastic plug – 86615069
UNF 1”, socket head screw – 86363660
Support disk – 86363652
Shock absorber – 86632072

Soundproof Housing (10.9, 10.10)

Soundproof housing – 86592185
Soundproofing kit – 86592466
Soundproofing plate – 86592417
Soundproofing plate – 86592250
Spring – 86616802

Tools & Accessories (10.13)

Pyramidal point – 86709680
Chisel – 86420791
Blunt tool – 86421955
Long moil point – 86449360
Long chisel – 86382082
Lubricating station – 86383759
Grease pump kit (Standard Housing) – 86615556
Grease pump kit (Soundproof Housing) – 86615564
Pressurization kit – 86475100

Pressurization Kit (11.1)

Pressurization kit – 86475100
Knee piece screw – 86231644
Lip seal – 86238466
Knee piece – 86231651
Adapter – 86475050

Lubricating Station (12.1)

Lubricating station – 86383759
Grease tank – 86379823
Cover – 86386844
Spring – 86379971
Piston – 86383791
Inductive switch – 86380144
Lubricating pump – 86502275
Support – 86390614
M12, hexa. screw – 96702303
M12, HFR nut – 86225133
Spare package – 86383775

Grease Pump Kits (12.3, 12.5)

Grease pump kit (Standard Housing) – 86615556
Lubricating pump – 86603313
Grease cartridge – 86614070
Sticker – 86619681
Adaptation – 86615689
UNF 5/8”, socket head screw – 86614849
Washer – 86384898
Hose – 86608932
Adapter – 86623386
Hose – 86614104
Adapter – 86608528
Collar – 86260619
Grease pump kit (Soundproof Housing) – 86615564
Lubricating pump – 86603313
Grease cartridge – 86614070
Sticker – 86619681
Adaptation – 86615697
UNF 5/8”, socket head screw – 86614849
Washer – 86384898
Hose – 86614104
Adapter – 86623386
Hose – 86614104
Adapter – 86608528
Hose – 86614112
Collar – 86614112

Accessories (12.2, 12.4, 12.6)

Grease bucket (20Kg) – 86383338
Oil bucket (20 kg) – 86357613
Grease cartridge (x12) – 86617222
Oil cartridge (x12) – 86617842
