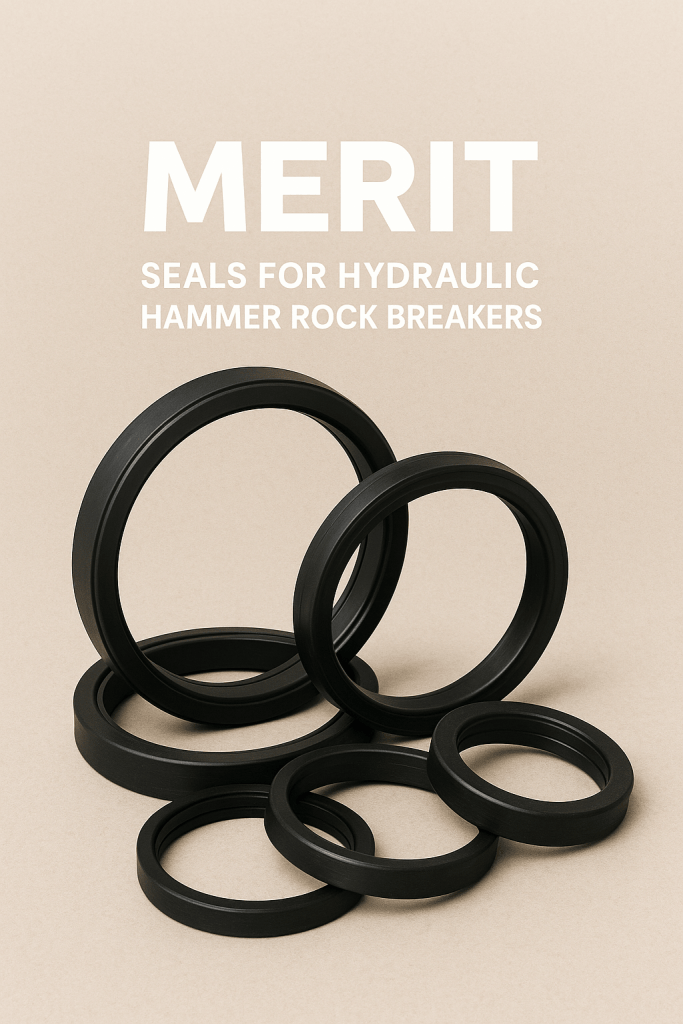

MTB 365 гидромолот ремкомплект помогает быстро и качественно восстановить работу вашего гидромолота. Все детали произведены из прочных материалов для максимальной износостойкости и долговечности.
-
Mtb 65 гидромолот ремкомплект
-
Mtb 85 гидромолот ремкомплект
-
Mtb 95 гидромолот ремкомплект
-
Mtb 95m гидромолот ремкомплект
-
Mtb 105 Dhx гидромолот ремкомплект
-
Mtb 120 гидромолот ремкомплект
-
Mtb 125 гидромолот ремкомплект
-
Mtb 135 Dhx гидромолот ремкомплект
-
Mtb 135 Qhx гидромолот ремкомплект
-
Mtb 150 гидромолот ремкомплект
-
Mtb 155 гидромолот ремкомплект
-
Mtb 170 гидромолот ремкомплект
-
Mtb 175 гидромолот ремкомплект
-
Mtb 175 Dhx гидромолот ремкомплект
-
Mtb 175 Qhx гидромолот ремкомплект
-
Mtb 205 Dhx гидромолот ремкомплект
-
Mtb 205 Qhx гидромолот ремкомплект
-
Mtb 210 гидромолот ремкомплект
-
Mtb 215 гидромолот ремкомплект
-
Mtb 235 Dhx гидромолот ремкомплект
-
Mtb 235 Qhx гидромолот ремкомплект
-
Mtb 250 гидромолот ремкомплект
-
Mtb 255 гидромолот ремкомплект
-
Mtb 265 Dhx гидромолот ремкомплект
-
Mtb 265 Qhx гидромолот ремкомплект
-
Mtb 270 гидромолот ремкомплект
-
Mtb 275 гидромолот ремкомплект
-
Mtb 285 гидромолот ремкомплект
-
Mtb 305 Dhx гидромолот ремкомплект
-
Mtb 305 Qhx гидромолот ремкомплект
-
Mtb 360 гидромолот ремкомплект
-
Mtb 405 Dhx гидромолот ремкомплект
-
Mtb 405 Qhx гидромолот ремкомплект
-
Mtb 500 гидромолот ремкомплект
-
Mtb 505 гидромолот ремкомплект
-
Mtb 505 Dhx гидромолот ремкомплект
-
Mtb 505 Qhx гидромолот ремкомплект
-
Mtb 700 гидромолот ремкомплект
-
Mtb 705 гидромолот ремкомплект
-
Mtb 705 Dhx гидромолот ремкомплект
-
Mtb 705 Qhx гидромолот ремкомплект
Выбирая MTB 365 гидромолот ремкомплект, вы получаете полный комплект уплотнений и деталей для удобного и эффективного ремонта. Поддерживайте свою технику всегда готовой к работе без лишних простоев.
Section 1: Housing Unit G 100
|
Part No. |
Description |
|---|---|
| 104262 | Housing (incl. parts 104-117) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 102643 | Wear plate |
| 102644 | Wear plate |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102389 | Pin |
| 101689 | Buffer |
| 101342 | Pin |
| 104348 | Label set (Kit) |
Section 2: Housing Unit G 100 City
|
Part No. |
Description |
|---|---|
| 104067 | Housing (incl. parts 103-117) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 400566 | Rubber plug D25 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 104126 | Wear plate |
| 104125 | Wear plate |
| 104124 | Wear plate |
| 102945 | Shield plate (incl. part 107.1) |
| 103875 | Plug |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102944 | Middle bushing |
| 102939 | Middle bushing |
| 91050 | Hex. screw M12x40-8.8 DIN 933 |
| 90513 | Hex. screw M12x30-8.8 DIN 933 |
| 91012 | Lock washer M12 NORD-LOCK |
| 102564 | Damper plate |
| 102389 | Pin |
| 101689 | Buffer |
| 101342 | Pin |
| 104349 | Label set (Kit) |
Section 3: Housing Unit G 100 City-Jet
|
Part No. |
Description |
|---|---|
| 104121 | Housing (incl. parts 103-122) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 400566 | Rubber plug D25 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 104126 | Wear plate |
| 104125 | Wear plate |
| 104124 | Wear plate |
| 102945 | Shield plate (incl. part 107.1) |
| 103875 | Plug |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102944 | Middle bushing |
| 102939 | Middle bushing |
| 91050 | Hex. screw M12x40-8.8 DIN 933 |
| 90513 | Hex. screw M12x30-8.8 DIN 933 |
| 91012 | Lock washer M12 NORD-LOCK |
| 102564 | Damper plate |
| 102389 | Pin |
| 103047 | Guide |
| 104122 | Hose assembly |
| 102783 | Nozzle |
| 90403 | Plug G1/4 |
| 90424 | Plug G1/2 |
| 101689 | Buffer |
| 101342 | Pin |
| 104349 | Label set (Kit) |
Section 4: Accumulator G 100
|
Part No. |
Description |
|---|---|
| 110561 | Accumulator (incl. parts 101-110) |
| 110560 | Accumulator bottom |
| 100491 | Accumulator cover |
| 104022 | Membrane |
| 40528 | Accumulator screw |
| 40368 | Filling plug |
| 40536 | Seal D144 |
| 154015 | Shield plug |
| 90056 | Ustr-ring U8.7-14-1 |
| 90304 | Parallel pin 10m6x24 DIN 6325 |
| 910006 | O-ring D23 |
| 300711 | Accumulator screw |
Section 5: Main Valve G 100
|
Part No. |
Description |
|---|---|
| 104186 | Main valve bushing |
| 300921 | Main spool |
| 400649 | Spool |
| 40523 | Spool |
| 30260 | Cover |
| 30295 | Cover |
| 90032 | O-ring D120 |
| 902644 | Seal |
| 91010 | Lock washer M20 NORD-LOCK |
| 900036 | Hex. screw M20x70-10.9 DIN 931 |
Section 6: Check Valve G 100
|
Part No. |
Description |
|---|---|
| 300725 | Check valve (incl. parts 301-304) |
| 300696 | Cover |
| 90007 | O-ring D44 |
| 915077 | Check valve |
| 90403 | Flange plug R1/4 |
| 90597 | Lock washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 7: Pressure Control Valve G 100
|
Part No. |
Description |
|---|---|
| 300723 | Pressure control valve (incl. parts 201-211) |
| 300871 | Cover |
| 300814 | Valve housing |
| 400581 | Guide |
| 300866 | Spool |
| 400582 | Spool |
| 42174 | Spring guide |
| 90118 | Spring |
| 90030 | O-ring D75 |
| 40533 | Seal D65 |
| 41374 | Seal D55 |
| 42363 | Shim plate S=0.9 |
| 42362 | Shim plate S=1.25 |
| 42361 | Shim plate S=1.5 |
| 90597 | Lock washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 8: Tie Rods G 100
|
Part No. |
Description |
|---|---|
| 103777 | Tie rod |
| 112491 | Tie rod nut |
| 400478 | Lock plate |
| 40586 | Rubber ring |
Section 9: Body Parts G 100
|
Part No. |
Description |
|---|---|
| 100394 | Valve body |
| 100418 | Cylinder |
| 100415 | Seal carrier |
| 100416 | Lower seal carrier |
| 100417 | Piston |
| 400562 | Breather |
| 40588 | Seal D210 |
| 903066 | Seal D160 |
| 911023 | Seal D142 |
| 90065 | Wiper D160 |
| 90064 | Wiper D142 |
| 400474 | Seal D160 |
| 400476 | Seal D260 |
| 400481 | Seal D280 |
| 910015 | O-ring D269 |
| 90012 | O-ring D19 |
| 910018 | O-ring D21 |
| 90403 | Flange plug R1/4 |
| 90410 | Flange plug R1 |
| 90424 | Flange plug R1/2 |
| 90317 | Parallel pin 16m6x50 DIN 6325 |
| 904017 | Parallel pin 16m6x70 DIN 6325 |
| 101700 | Breather (incl. part 61.2) |
| 901173 | O-ring D27 |
| 90444 | Flange plug R3/8 |
Section 10: Front Head G 100
|
Part No. |
Description |
|---|---|
| 100395 | Front head (incl. parts 60, 66 and 68) |
| 200359 | Thrust ring |
| 300619 | Upper tool bushing |
| 400470 | Tool retaining pin D80 |
| 40110 | Wedge |
| 400468 | Retaining pin D30 |
| 400415 | Retaining pin D28 |
| 90000 | O-ring D24 |
| 400469 | Retaining pin D40 |
| 904006 | Split pin 30×40 DIN 1481 |
| 901134 | Split pin D40x70 |
| 90200 | Grease nipple R1/4 |
| 42428 | Spring |
| 400419 | Spring guide |
| 111404 | Plug |
Section 11: Lower Tool Bushing G 100
|
Part No. |
Description |
|---|---|
| 102159 | Lower tool bushing (incl. part 14.2) |
| 102149 | Seal |
Section 12: Seal Set G 100
|
Part No. |
Description |
|---|---|
| 400568 | Seal set (Kit) |
| 90000 | O-ring D24 |
| 40588 | Seal D210 |
| 90036 | O-ring D209 |
| 903066 | Seal D160 |
| 911023 | Seal D142 |
| 90065 | Wiper D160 |
| 90064 | Wiper D142 |
| 400474 | Seal D160 |
| 400476 | Seal D260 |
| 400481 | Seal D280 |
| 910015 | O-ring D269 |
| 90012 | O-ring D19 |
| 90011 | O-ring D14 |
| 910018 | O-ring D21 |
| 90032 | O-ring D120 |
| 910013 | O-ring D117 |
| 902644 | Seal |
| 90017 | O-ring D34 |
| 910014 | O-ring D64 |
| 901173 | O-ring |
| 40536 | Seal D144 |
| 90056 | Ustr-ring U8.7-14-1 |
| 90030 | O-ring D75 |
| 40533 | Seal D65 |
| 41374 | Seal D55 |
| 90007 | O-ring D44 |
| 910006 | O-ring D23 |
Section 1: Housing Unit S 86
|
Part No. |
Description |
|---|---|
| 10237 | Housing (incl. parts 118-128) |
| 30273 | Spacer plate |
| 40542 | Pad |
| 30274 | Buffer |
| 40540 | Spring |
| 90519 | Lock nut M36-8 DIN 985 |
| 90521 | Washer 39 DIN 126 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 40131 | Pin |
| 40531 | Wear plate |
| 40539 | Pin |
| 40538 | Pin |
| 41148 | Shim plate |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 901464 | Lifting eye M36 DIN 580 |
| 200232 | Label set (Kit) |
Section 2: Accumulator S 86
|
Part No. |
Description |
|---|---|
| 30270 | Accumulator (incl. parts 101-111) |
| 10230 | Accumulator bottom |
| 10231 | Accumulator cover |
| 30269 | Membrane |
| 40528 | Screw |
| 40368 | Screw |
| 40536 | Seal D144 |
| 400300 | Plug |
| 90056 | Ustr-ring U 8.7-14-1 |
| 90304 | Guide pin D10 |
| 910006 | O-ring D23 |
| 42078 | Washer |
| 30261 | Accumulator screw |
Section 3: Main Valve S 86
|
Part No. |
Description |
|---|---|
| 20183 | Bushing |
| 30267 | Spool |
| 40524 | Spool |
| 40523 | Spool |
| 30260 | Cover |
| 30295 | Cover |
| 90032 | O-ring D119 |
| 90033 | O-ring D124 |
| 91010 | Locking washer M20 NORD-LOCK |
| 90518 | Hex. screw M20x1.5×45-10.9 DIN 961 |
Section 4: Check Valve S 86
|
Part No. |
Description |
|---|---|
| 40587 | Check valve (incl. parts 301-306, 54 and 56) |
| 30272 | Check valve housing |
| 90432 | Check valve assembly |
| 90310 | Locking ring B38 DIN 7993 |
| 90403 | Plug R1/4 |
| 90031 | O-ring D46 |
| 90007 | O-ring D44 |
| 90597 | Locking washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 5: Pressure Control Valve S 86
|
Part No. |
Description |
|---|---|
| 31820 | Pressure control valve (incl. parts 201-212) |
| 30266 | Cover |
| 30268 | Guide |
| 40527 | Guide |
| 31430 | Spool |
| 40522 | Spool |
| 40525 | Spring guide |
| 90118 | Spring D32x115 |
| 90030 | O-ring D74 |
| 40533 | Seal D64 |
| 40534 | Seal D54 |
| 42363 | Shim plate S=0.9 mm |
| 42362 | Shim plate S=1.25 mm |
| 42361 | Shim plate S=1.5 mm |
| 42099 | Spring support |
| 90597 | Locking washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 6: Tie Rods S 86
|
Part No. |
Description |
|---|---|
| 20282 | Side rod |
| 30480 | Nut |
| 40585 | Locking ring |
| 40586 | Rubber ring |
Section 7: Body Parts S 86
|
Part No. |
Description |
|---|---|
| 10549 | Valve housing |
| 10223 | Cylinder |
| 100172 | Seal carrier |
| 10225 | Piston |
| 40588 | Seal D209 |
| 40589 | Seal D37 |
| 40388 | Seal D26 |
| 911002 | Seal D160 |
| 90063 | Seal D142 |
| 40590 | Seal D140 |
| 90034 | O-ring D259 |
| 90012 | O-ring D19 |
| 90064 | Wiper D142 |
| 913000 | Wiper D160 |
| 90410 | Plug R1 |
| 90424 | Plug R1/2 |
| 90300 | Guide pin D16 |
| 101700 | Breather (incl. part 61.2) |
| 901173 | O-ring |
| 90555 | Hex. socket screw M10x25-8.8 DIN 912 |
| 400485 | Flange |
Section 8: Front Head S 86
|
Part No. |
Description |
|---|---|
| 10217 | Front head |
| 30254 | Thrust ring |
| 40502 | Upper tool bushing |
| 41064 | Pin |
| 40110 | Wedge |
| 40570 | Pin |
| 40503 | Pin |
| 901134 | Split pin D40x70 |
| 90000 | O-ring D24 |
| 90109 | Spring D25x89 |
| 40116 | Plug |
| 90200 | Grease nipple AR 1/4 DIN 71412 |
Section 9: Lower Tool Bushing S 86
|
Part No. |
Description |
|---|---|
| 21155 | Lower tool bushing |
Section 10: Seal Set S 86
|
Part No. |
Description |
|---|---|
| 42431 | Seal set (Kit) |
| 40588 | Seal D209 |
| 40589 | Seal D37 |
| 40388 | Seal D26 |
| 911002 | Seal D160 |
| 90063 | Seal D142 |
| 40590 | Seal D140 |
| 90000 | O-ring D24 |
| 90032 | O-ring D119 |
| 90033 | O-ring D124 |
| 90034 | O-ring D259 |
| 90010 | O-ring D33 |
| 90009 | O-ring D38 |
| 90012 | O-ring D19 |
| 90064 | Wiper D142 |
| 913000 | Wiper D160 |
| 901173 | O-ring D27 |
| 40536 | Seal D144 |
| 90056 | Ustr-ring |
| 90030 | O-ring D74 |
| 40533 | Seal D64 |
| 40534 | Seal D54 |
| 90031 | O-ring D46 |
| 90007 | O-ring D44 |
| 910006 | O-ring D23 |
Section 11: S 86 W-Model Parts
|
Part No. |
Description |
|---|---|
| 31550 | Housing (incl. parts 119-120) |
| 31915 | Spacer plate |
| 42075 | Buffer |
| 10548 | Piston |
| 31549 | Bushing |
| 41336 | Pin |
| 90087 | O-ring D79 |
| 41980 | Pin |
| 41979 | Pin |
| 93629 | Hose 5723-12-12-/H1-78-12/5714-25-21 L = 680 |
| 93042 | Coupling SR25 DIN 2353 St-GT |
| 90008 | O-ring D25 |
| 90404 | Split flange 251-12 3000 psi |
| 90504 | Hex. socket screw M10x30-8.8 DIN |
Epiroc HB 7000 & HB 7000 DP Spare Parts List.
General Information (Page 2)
|
Part Number |
Description |
|---|---|
| 3363120920 | Hydraulic breaker HB 7000 with lower wear bush (steel) |
| 3363121277 | Hydraulic breaker HB 7000 with lower wear bush (bronze) |
| 3363120949 | Hydraulic breaker HB 7000 DP with lower wear bush (steel) |
| 3363121278 | Hydraulic breaker HB 7000 DP with lower wear bush (bronze) |
| 3363124802 | Hydraulic breaker HB 7000 with lower wear bush (steel) with HATCON |
| 3363124803 | Hydraulic breaker HB 7000 with lower wear bush (bronze) with HATCON |
| 3363124804 | Hydraulic breaker HB 7000 DP with lower wear bush (steel) with HATCON |
| 3363124805 | Hydraulic breaker HB 7000 DP with lower wear bush (bronze) with HATCON |
Label Kit (Page 5)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363121380 | Label kit HB 7000 | 1 |
| (Item 701) | Label “HB 7000 Epinoc” | 2 |
| (Item 705) | Label – Lubricating symbol | 1 |
| (Item 706) | Label – Gas pressure | 2 |
| (Item 710) | Sound power label | 1 |
| (Item 720) | Name plate – Consult the authorized Customer Center/Dealer in your area. | 1 |
Kit List (Pages 7-10)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363121225 | Seal kit | 1 |
| 3360314376 | O-ring | 1 |
| 3360314370 | O-ring | 1 |
| 3363123253 | Seal | 1 |
| 3360478171 | O-ring | 1 |
| 3360314373 | O-ring | 2 |
| 3361850422 | Seal kit | 1 |
| 3363121175 | Seal | 1 |
| 3363121176 | Back-up ring | 2 |
| 3360314453 | O-ring | 1 |
| 3360314364 | O-ring | 2 |
| 3360328046 | Back-up ring | 2 |
| 3360478426 | Threaded plug | 1 |
| 3360175125 | O-ring | 1 |
| 3363103419 | Seal | 1 |
| 3360314455 | O-ring | 16 |
| 3360314368 | O-ring | 7 |
| 3360478097 | O-ring | 12 |
| 3361031988 | O-ring | 2 |
| 3362268907 | Seal kit | 2 |
| 3363083672 | Wiper | 1 |
| 3360106819 | Lock pin | 1 |
| 3362268905 | Seal kit | 2 |
| 3360106818 | Lock pin | 1 |
| 3360314453 | O-ring | 3 |
| 3363091732 | Seal kit for swivel joint for automatic lubrication system | 1 |
| 3363089517 | Plastic parts kit | 1 |
| 3362260549 | Elastic pad | 1 |
| 3362260545 | Shock absorber | 2 |
| 3362269697 | Guide plate | 4 |
| 3362262667 | Guide plate | 2 |
| 3362262665 | Guide plate | 2 |
| 3363093383 | Plate | 1 |
| 3363094355 | Tensioning bolt kit | 1 |
| 3363093655 | Washer | 4 |
| 3363085499 | Threaded insert | 4 |
| 3363094391 | DustProtector kit | 1 |
| 3363070666 | Floating ring (tribolid) | 1 |
| 3363035643 | Counter ring | 1 |
| 3363035639 | Guide ring | 1 |
| 3363070645 | Bolt | 2 |
| 3361854363 | Locking bush | 2 |
| 3363119327 | Noise protection kit | 1 |
| 3363086017 | Plug | 2 |
| 3363031181 | Cover | 13 |
| 3363092697 | Cover | 1 |
| 3363103412 | Lower breaker part kit (steel) | 1 |
| 3362260429 | Retainer bar | 2 |
| 3362260431 | Bolt | 2 |
| 3362260435 | Plug | 4 |
| 3363069085 | Impact ring | 1 |
| 3363069507 | Wear bush | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3362260431 | Bolt | 4 |
| 3362260433 | Locking bush | 6 |
| 3315038100 | Bio chisel paste cartridge, 12 x 400 g (0.88 lbs) | 1 |
| 3362235295 | Test gauge lower wear bush | 1 |
| 3363094381 | Lower breaker part kit (bronze) | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
| 3363103413 | Lower breaker part kit (steel) for DustProtector version | 1 |
| 3363088649 | Base for wiper | 1 |
| 3363034589 | Wiper | 1 |
| 3363094382 | Lower breaker part kit (bronze) for DustProtector version | 1 |
| 3363103487 | Fastening screw kit | 1 |
| 3363113101 | Fastening screw | 4 |
| 3363100049 | Washer | 4 |
| 3361031546 | Threaded insert | 4 |
| 3363089850 | Accumulator repair kit | 1 |
| 3361329022 | Diaphragm | 1 |
| 3360332259 | Filling screw | 1 |
| 3360314460 | O-ring | 1 |
| 3361335025 | Protective cap | 1 |
| 3363094300 | Anti-seize 120 g | – |
Hydraulic Breaker HB 7000 (Pages 12-14)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3362260549 | Elastic pad | 1 |
| 3362260545 | Shock absorber | 2 |
| 3362269697 | Guide plate | 4 |
| 3362262667 | Guide plate | 2 |
| 3362262665 | Guide plate | 2 |
| 3363093383 | Plate | 1 |
| 3363083677 | Transport safety device complete | 1 |
| 3360114151 | Allen screw | 2 |
| 3363091872 | Label transport safety device | 1 |
| 3360103255 | Nut | 2 |
| 3363031181 | Cover | 2 |
| 3363086017 | Plug | 13 |
| 3363098852 | Plate | 1 |
| 3360103768 | Allen screw | 3 |
| 3361333703 | Pair of lock washers | 3 |
| 3360103750 | Allen screw | 2 |
| 3361850596 | Pair of lock washers | 6 |
| 3363098838 | Plate | 1 |
| 3363092697 | Cover | 1 |
| 3363106729 | Plate | 1 |
| 3363111477 | Swivel joint cover | 1 |
| 3363111461 | Swivel joint cover | 1 |
| 3363111296 | Pair of lock washers | 2 |
| 3360103751 | Allen screw | 6 |
| 3363111996 | Lifting eye | 2 |
| 3315439145 | Protective plug HATCON | 4 |
| 3363106730 | Breaker box | 1 |
| 3363067123 | Automatic lubrication system | 2 |
Hydraulic Breaker HB 7000 DP (Pages 16-18)
(Includes many parts from HB 7000, plus the following)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363070666 | Floating ring (tribolid) | 1 |
| 3363035643 | Counter ring | 1 |
| 3363035639 | Guide ring | 1 |
| 3363070645 | Bolt | 2 |
| 3361854363 | Locking bush | 2 |
| 3363088649 | Base for wiper | 1 |
| 3363034589 | Wiper | 1 |
| 3363106726 | Breaker box | 1 |
Percussion Unit – Cylinder Cover (Pages 21-22)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363121010 | Cylinder cover | 1 |
| 3363086519 | Main control valve | 1 |
| 3363086515 | Cover | 1 |
| 3360314376 | O-ring | 1 |
| 3360026784 | Allen screw | 8 |
| 3361850748 | Pair of lock washers | 8 |
| 3363035453 | Valve (AutoControl) | 1 |
| 3363035425 | Threaded plug | 1 |
| 3360314370 | O-ring | 1 |
| 3363085270 | Safety valve (PowerAdapt) | 1 |
| 3363087086 | Threaded plug | 1 |
| 3363087087 | Threaded plug | 1 |
| 3363123253 | Seal | 1 |
| 3361854657 | Connecting screw | 1 |
| 3360478171 | O-ring | 1 |
| 3361854511 | Non-return valve | 1 |
| 3360314373 | O-ring | 2 |
| 3360026513 | Allen screw | 12 |
| 3363116889 | Swivel joint complete | 1 |
| 3363116887 | Adapter complete | 1 |
| 3363116062 | Snapring | 1 |
| 3363086569 | Adapter | 1 |
| 3361850422 | Seal kit | 1 |
| 3361356645 | Disk | 1 |
| 3363083749 | Cap | 1 |
| 3363116888 | Swivel joint complete | 1 |
| 3361356643 | Adapter | 1 |
| 3361353489 | Cap | 1 |
| 3363094981 | HP-accumulator | 2 |
| 3363113101 | Fastening screw | 8 |
| 3363114730 | Service kit O-rings | 2 |
| 3363100049 | Washer | 8 |
| 3361844113 | Strainer disk | 2 |
| 3361844115 | Threaded plug | 2 |
| 3361031546 | Threaded insert | 8 |
| 3361031529 | Threaded insert | 8 |
| 3363104787 | Flange | 1 |
| 3360103750 | Allen screw | 6 |
| 3363087286 | Filling valve complete | 1 |
| 3360478426 | Threaded plug | 1 |
| 3360175125 | O-ring | 1 |
| 3363085625 | Tensioning bolt complete | 8 |
| 3363093655 | Washer | 1 |
| 3363120683 | Valve (IPS – Intelligent Protection System) | 1 |
Percussion Unit – Cylinder (Page 25)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363120917 | Seal flange | 1 |
| 3363103419 | Seal | 1 |
| 3360314455 | O-ring | 16 |
| 3360314368 | O-ring | 7 |
| 3360478097 | O-ring | 12 |
| 3361031988 | O-ring | 2 |
| 3362268907 | Seal kit | 2 |
| 3363121022 | Cylinder | 1 |
| 3363083672 | Wiper | 1 |
| 3363087006 | Percussion piston | 1 |
| 3360106819 | Lock pin | 1 |
| 3362268905 | Seal kit | 2 |
Lower Breaker Part (Steel) (Page 27)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3362260429 | Retainer bar | 2 |
| 3362260431 | Bolt | 2 |
| 3360106818 | Lock pin | 1 |
| 3362260435 | Plug | 4 |
| 3361855719 | Protective cap | 1 |
| 3360314453 | O-ring | 3 |
| 3363089500 | Lower breaker part complete with lower wear bush steel | 1 |
| 3363069085 | Impact ring | 1 |
| 3363069507 | Wear bush | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3362260431 | Bolt | 4 |
| 3362260433 | Locking bush | 6 |
| 3363085499 | Threaded insert | 8 |
| 3363086301 | Plug | 3 |
Lower Breaker Part (Bronze) (Page 29)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363116925 | Lower breaker part complete with lower wear bush bronze | 1 |
| 3363089507 | Wear bush | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
Connecting Kit for Automatic Lubrication System (Page 31)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363118844 | Support | 1 |
| 3360026512 | Allen screw | 8 |
| 3360100796 | Allen screw | 8 |
| 3361850596 | Pair of lock washers | 8 |
| 3361333703 | Pair of lock washers | 8 |
| 3363119350 | Connecting kit for automatic lubrication system | 1 |
| 3363083877 | Hydraulic hose (Oil line) | 1 |
| 3363087583 | Hydraulic hose (Grease line) | 1 |
| 3362267584 | Seal | 4 |
| 3363087185 | Fitting | 1 |
| 3363066234 | Fitting | 1 |
| 3363087186 | Fitting | 1 |
| 3363066233 | Fitting | 1 |
| 3360107879 | Plug | 3 |
HATCON (Page 33)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3315439130 | Damper HATCON | 2 |
| 3315439110 | Housing type 1 HATCON | 1 |
| 3315439140 | Lock ring HATCON | 1 |
| 3315439120 | Sleeve HATCON | 4 |
| 3315439100 | Product label HATCON | 1 |
| 3315442800 | Screw HATCON | 4 |
Optional Parts (Page 35)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363035641 | Floating ring (steel) | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
| 3363117931 | Automatic lubrication system HD | 2 |
Hydraulic Hoses (Page 45)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3361853860 | Hydraulic hose, I.D. 32 (1 1/4″), both ends JIC 1 5/8″, length 2800 mm (110 in.) | 1 |
| 3363083563 | Hydraulic hose, I.D. 40 (1 1/2″), both ends JIC 1 7/8″, length 2800 mm (110 in.) | 1 |
| 3361853861 | Hydraulic hose, I.D. 32 (1 1/4″), both ends JIC 1 5/8″, length 3500 mm (138 in.) | 1 |
| 3363083562 | Hydraulic hose, I.D. 40 (1 1/2″), both ends JIC 1 7/8″, length 3500 mm (138 in.) | 1 |
Optional Equipment (Page 47)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363122356 | Bio chisel paste cartridge, 12 x 550 g (1.2 lbs) | 1 |
| 3363091200 | Chisel paste cartridge, 12 x 500 g (1.1 lbs) | 1 |
| 3363034567 | GREASE PUMP | 1 |
| 3360433774 | Grease nipple | 1 |
| 3363089845 | Maintenance and charging box with nitrogen cylinder, 51, 1.1 gal (1.32 US gal) | 1 |
| 3363094940 | Maintenance and charging box without nitrogen cylinder | 1 |
| 3362235295 | Test gauge lower wear bush | 1 |
| 3363094952 | Inside callipers upper wear bush | 1 |
| 3363093497 | Base plate with threaded inserts | 1 |
| 3363087305 | Bolt kit | 1 |
| 3363102875 | Base plate with through borings | 1 |
| 3363094577 | Bolt kit | 1 |
| 3360478949 | Allen key (27 mm) | 1 |
| 3363103077 | Adapter kit for underwater applications | 1 |
| 3315442500 | Retrofit kit HATCON | 1 |
| 3315439105 | Security bit HATCON | 1 |
| 3315439106 | Magnet HATCON | 1 |
| 3363092991 | Piston retainer | 1 |
Working Tools – ClassicLine HB 7000 (Page 49)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363119563 | Moll point | 1 |
| 3363119564 | Chisel (cross) | 1 |
| 3363119565 | Chisel (parallel) | 1 |
| 3363119566 | Blunt tool | 1 |
Working Tools – ProLine HB 7000 (Page 51)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363118329 | Moll point | 1 |
| 3363118333 | Chisel (cross) | 1 |
| 3363091425 | Blunt tool | 1 |
Working Tools – ClassicLine HB 7000 DP (Page 53)
(Same parts as ClassicLine HB 7000)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363119563 | Moll point | 1 |
| 3363119564 | Chisel (cross) | 1 |
| 3363119565 | Chisel (parallel) | 1 |
| 3363119566 | Blunt tool | 1 |
Working Tools – ProLine HB 7000 DP (Page 55)
(Same parts as ProLine HB 7000)
|
Part Number |
Name |
Qty |
|---|---|---|
| 3363118329 | Moll point | 1 |
| 3363118333 | Chisel (cross) | 1 |
| 3363091425 | Blunt tool | 1 |
