RAMMER 3288 Hydraulic Breaker Tool

RAMMER 3288 Hydraulic Breaker Tool is Engineered for the Toughest Demands at MERIT.

When your project involves heavy-duty demolition, trenching, or quarrying, you need a tool that doesn’t just work—it dominates. The Rammer BR3288 Pyramid Tool is designed for maximum penetration and extreme durability in the most challenging environments.

---

Technical Specifications

Precision-engineered to meet the rigorous standards of the Rammer series:

Feature	Specification
Model	Rammer 3288 / BR3288
Tool Type	Pyramid (Optimal for hard rock & reinforced concrete)
Diameter	142 mm
Length	1200 mm
Weight	153 kg
Material	High-grade, Heat-treated Alloy Steel

---

Why Choose the Rammer 3288 Pyramid Tool?

• Superior Material Strength: Crafted from specialized heat-treated alloy steel to minimize wear and prevent premature breakage.

• Optimized Impact: The 142mm diameter ensures stable energy transfer, delivering 100% of the hammer’s power directly into the material.

• Extended Service Life: Designed to withstand high thermal stress and abrasive conditions, reducing your downtime and maintenance costs.

• Versatility: Perfect for secondary breaking and heavy demolition where precision and power must meet.

  1. Housing Unit Assemblies
  Heavy Duty (HD)
  Housing: 168089
  Pad: 155438
  Buffer (Standard): 154317
  Buffer (Heavy duty): 168203
  Plug: 157947
  Hex. screw (M24x110-12.9): 90589
  Washer: 90511
  Lock nut (M24-12): 90507
  Shield plate: 163556
  Plug: 158147
  Plug: 400491
  Plug: 953291
  Wear plate: 163355
  Lifting eye (M30): 90705
  Hex. screw (M30x40-8.8): 900026
  Seal: 153013
  Wear parts: 168211
  Heavy Duty Hard Rock (HDHR) & Primary Breaking
  Housing (HDHR/Primary): 168085
  Wear plate: 162598
  Wear plate: 162597
  Wear parts: 160399
  2. Internal Percussion Unit Components
  Accumulator
  Accumulator (complete): 155339
  Accumulator bottom: 173741
  Accumulator cover: 155342
  Membrane: 173532
  Accumulator screw: 40416
  Filling plug: 40368
  Shield plug: 154015
  O-ring (D23): 910006
  Parallel pin: 90304
  Usit-ring: 90056
  Accumulator screw: 41335
  Seal (D124): 41357
  O-ring (D194): 910002
  Main Valve
  Main valve bushing: 103802
  Main spool: 162453
  Spool (D23): 101853
  Spool (D16): 40112
  Cover: 101472
  Cover: 101830
  Seal (D110): 902668
  O-ring (D105): 90005
  Lock washer: 90597
  Hex. screw: 90517
  Ramvalve
  Ramvalve (complete): 172210
  Cover: 172149
  Valve housing: 172211
  Spool: 171031
  Spring: 954342
  O-ring (D34/D46/D44): 90017 / 90031 / 90007
  Shim plate: 954349
  Seal (D34): 954341
  Pressure Control Valve
  Pressure control valve (complete): 162450
  Valve housing: 162451
  Spool: 162452
  Guide: 400688
  O-ring (D60): 90083
  Spring: 90104
  Seal (D50/D55): 41375 / 41374
  O-ring (D21): 910018
  Plug: 112512
  3. Body and Front Head Parts
  Body Parts
  Valve body: 162448
  Breather: 400662
  Flange plug (R3/4): 90401
  Cylinder: 162442
  Piston: 162445
  Seal carrier: 162446
  Wiper (D119): 901160
  Seal (D120/D118): 955144 / 150244
  Front Head
  Front head: 173679
  Thrust ring: 155467
  Upper tool bushing: 101414
  Tool retaining pin: 153235
  Ring: 153236
  Wedge: 40110
  Retaining pin (D30): 173680
  Rubber ring: 173685
  Lower tool bushing: 155206

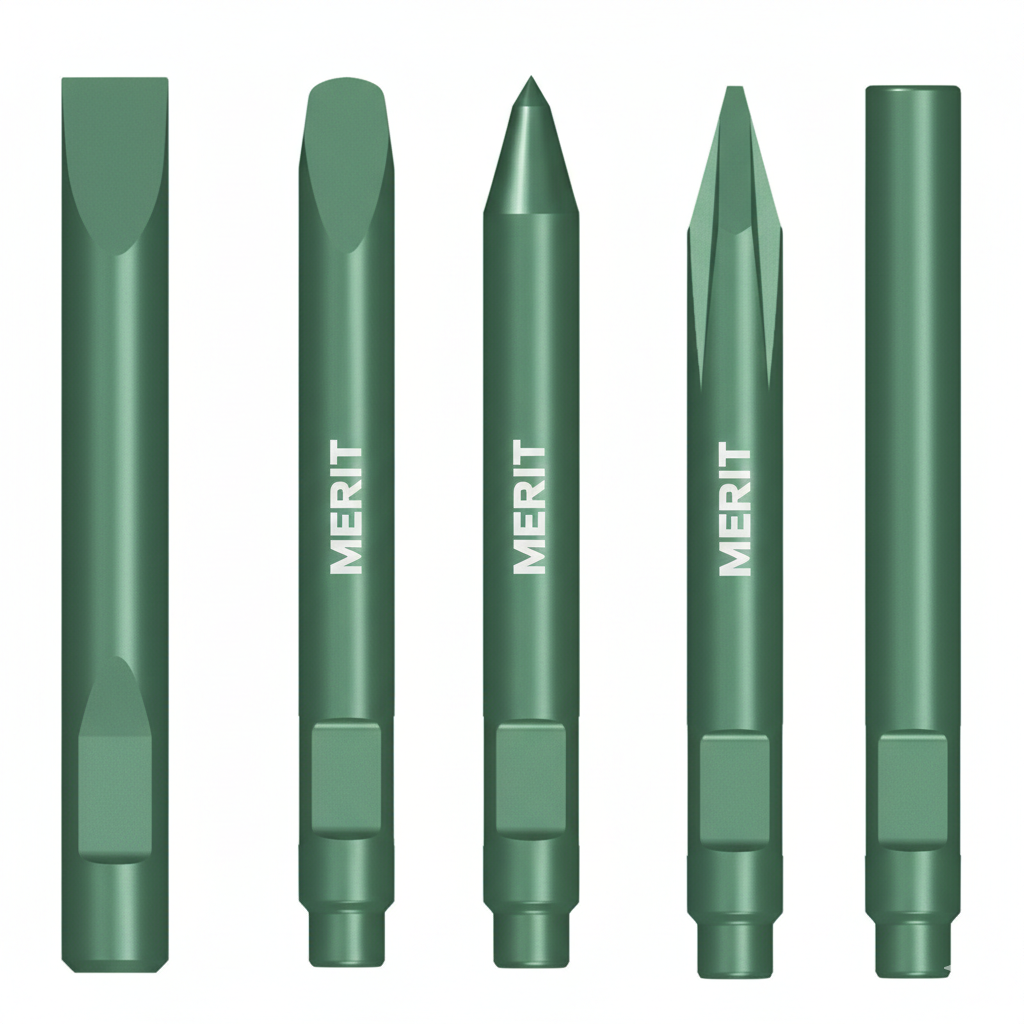

  4. Working Tools
  Chisel (881): 881
  Moil point (883): 883
  Blunt (884): 884
  Pyramid (883K3): 883K3
  Limestone Chisel (881F3): 881F3
  Hard Rock Chisel (881A2): 881A2
  Super Blunt (884T2): 884T2
  5. Service Kits
  Seal set: 163428
  Service kit (Basic): K13288
  Service kit 2A (HD): K2A3288
  Service kit 2B (HDHR): K2B3288
  Service kit 2D (Primary Breaking): K2D3288
