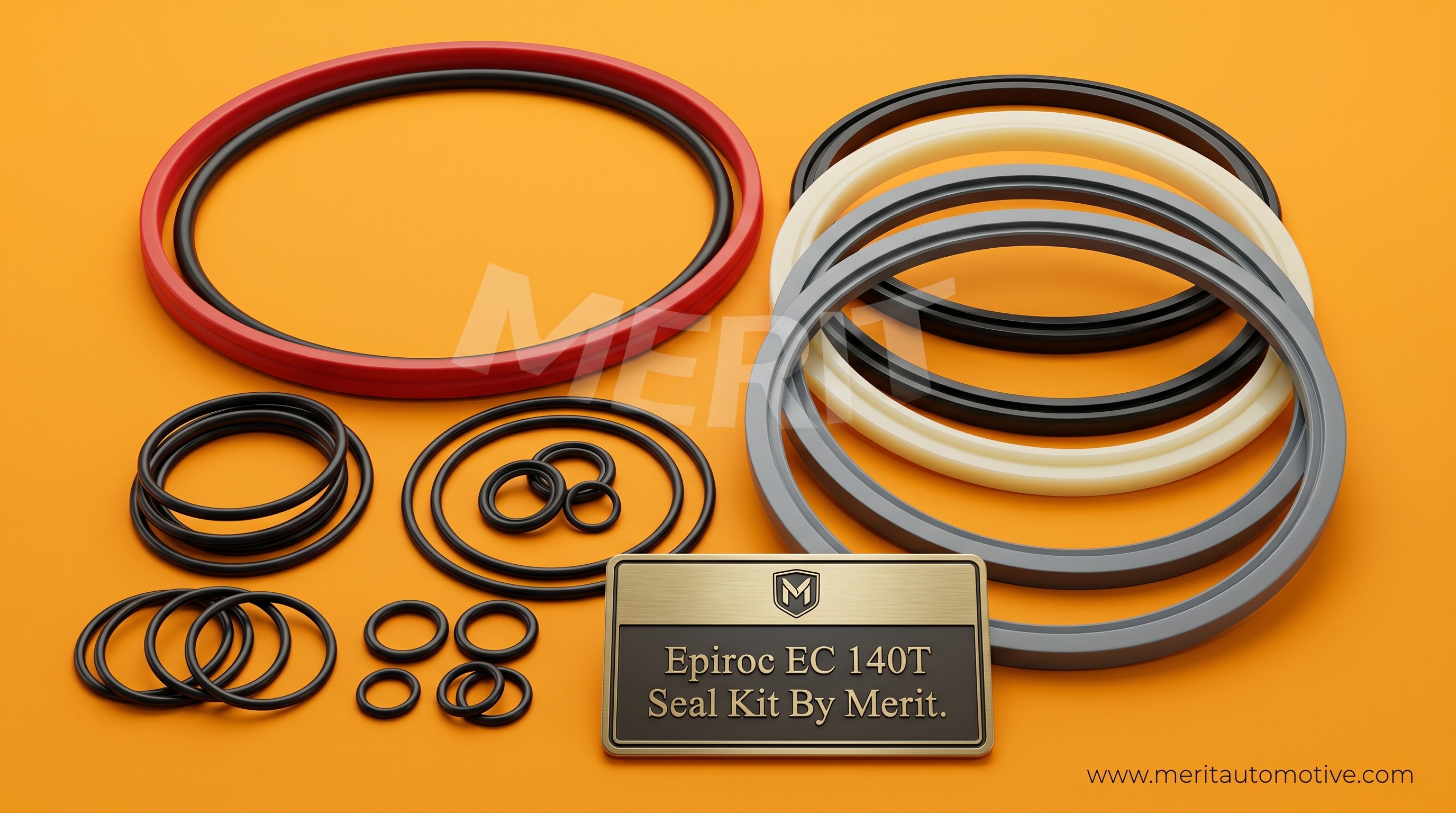

Seal Kit 3363112932 for Epiroc EC 140T hydraulic breaker includes high-quality O-rings, seals, and wipers for reliable performance. Designed for durability under high pressure, it ensures efficient operation and long service life.
I. Seals, O-Rings, and Repair Kits
Essential components for maintaining hydraulic pressure and preventing leaks within the breaker system.
-
3363112932: Seal kit
-
3362263822: Seal kit
-
3363089849: Accumulator repair kit
-
3363031872 / 3363031973 / 3363114621: Specialized Seals
-
3362267584 / 3362267589 / 3362267557: Seal series
-
3363083668: Wiper
-
3362261647: Diaphragm
-
O-Rings: 3360314375, 3360314372, 3360175125, 3361031912, 3361031990, 3363112659, 3360314656, 3360479721, 3362328126, 3360478098, 3360314460, 3360478171
II. Mechanical Components & Fasteners
Heavy-duty hardware and structural parts designed for shock absorption and stability.
-
Shock Absorption: 3363105171 (Elastic pad), 3363105173 (Shock absorber)
-
Plugs & Inserts: 3360478426 (Threaded plug), 3363086011 (Plug), 3361031989 (Threaded insert)
-
Covers & Plates: 3363033551 (Cover), 3363116113 (Cover), 3363115969 (Guide plate)
-
Screws & Washers: 3363098088 (Fastening screw kit), 3363070490 (Allen screw), 3361333703 (Pair of lock washers)
-
Lifting & Safety: 3363111994 (Lifting eye), 3363083416 (Transport safety device)
III. Percussion Unit Parts
The core internal components responsible for the striking action of the hydraulic hammer.
-
Main Assemblies: 3363112441 (Cylinder), 3363085730 (Percussion piston), 3363106623 (Lower breaker part)
-
Valves: 3363118244 (Main control valve), 3361854511 (Non-return valve), 3363087286 (Filling valve complete)
-
Internal Hardware: 3363112935 (Tensioning bolt), 3363069585 (HP-accumulator), 3363105555 (Wear bush)
-
Retainers: 3360981927 (Retainer bar), 3363033027 (Bolt), 3363033043 (Locking bush)
IV. HATCON Components
Specialized parts for the HATCON remote monitoring and tracking system.
-
3315439110: Housing type 1
-
3315439130: Damper
-
3315439120: Sleeve
-
3315439145: Protective plug
-
3315442500: Retrofit kit
V. Options, Accessories & Maintenance Tools
Tools and kits designed for the upkeep and field-servicing of hydraulic equipment.
-
Lubrication: 3363122356 (Bio chisel paste), 3363117805 (Auto lubrication kit), 3363034567 (Grease pump)
-
Charging Kits: 3363491004 (Charging box with N2 cylinder)
-
Hoses: 3363087015 (2300 mm), 3363087016 (2800 mm)
-
Measurement: 3363067413 (Test gauge), 3363094952 (Inside calipers)
VI. Working Tools (Chisels & Points)
Ground-engaging tools available in ClassicLine and ProLine tiers for various demolition needs.
| Tool Type | ClassicLine P/N | ProLine P/N |
| Moil Point | 3363119675 | 3363118356 |
| Chisel (Cross) | 3363119676 | 3363118358 |
| Chisel (Parallel) | 3363119677 | – |
| Blunt Tool | 3363119678 | 3363104341 |
