Shank Thrust Montabert V45 86596327

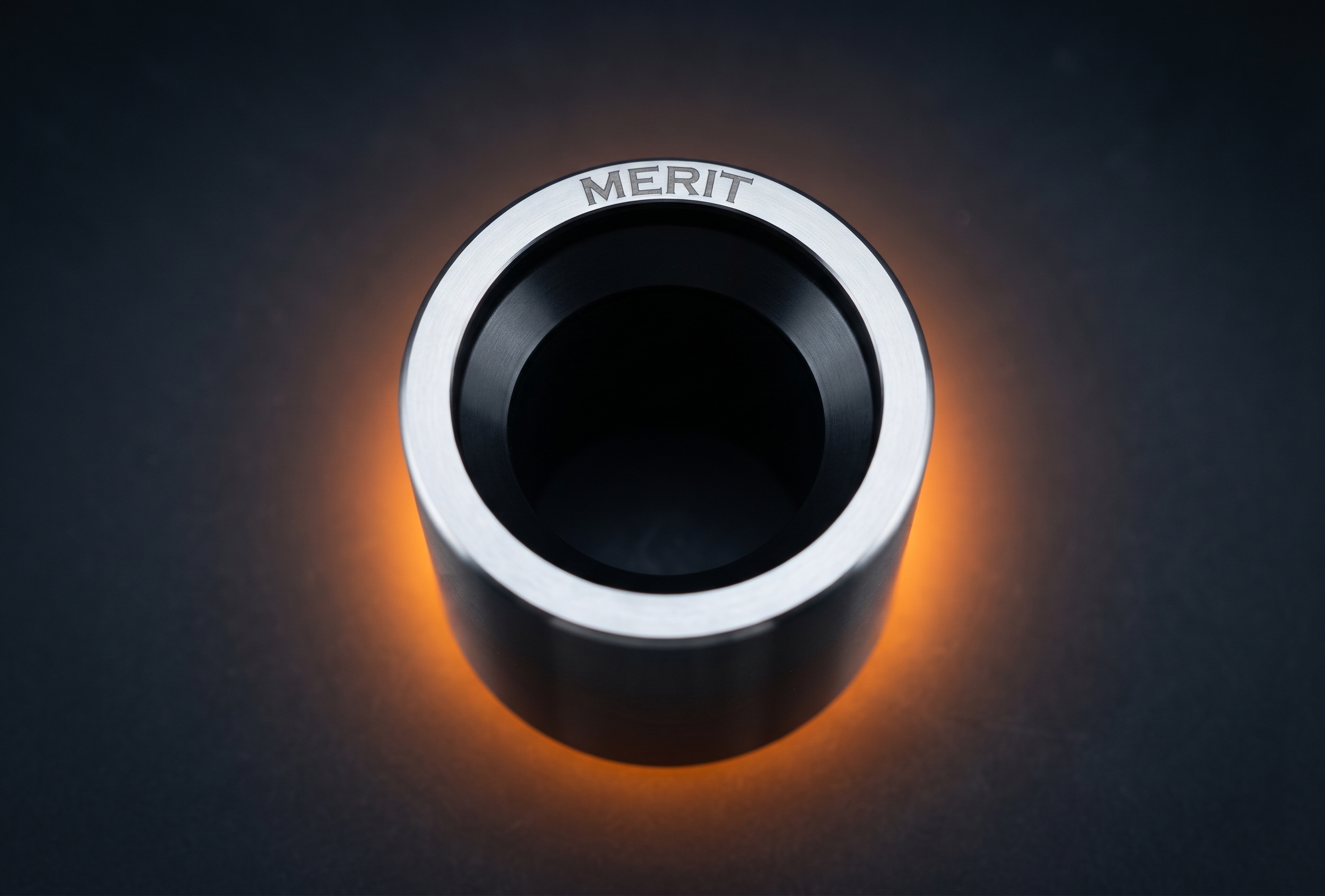

Shank Thrust 86596327 for Montabert V45 Hydraulic Breaker

Shank thrust 86596327 for the Montabert V45 hydraulic breaker. High-quality replacement wear part with exact catalogue fit. Fast worldwide shipping.

Category: Tags: , , , , , , , , , , , , , , , , , , Brand:

Shank thrust part no. 86596327 for the Montabert V45 hydraulic breaker. This wear part sits in the impact zone of the breaker, close to the tool shank, and takes heavy load with every blow. A worn shank thrust can cause poor tool alignment, lower impact efficiency, uneven wear and damage to the strike piston and tool bushings. Replacing it on time keeps your V45 working at full power and protects other costly internal parts. Made to match the original catalogue specification for exact fit. Suitable for Montabert V45, serial no. V045H. Fast worldwide shipping. Contact us for price and availability today.

Outer Diameter (max): 7.68 in
Length: 6.28 in

Montabert V45 Accumulator and Valve Parts

Item Part No. Description Qty
10 86265048 Screw 1
20 86241403 Tight ring 1
30 86381340 Screw 16
40 86383940 Upper flange 1
50 86633914 Diaphragm 1
60 86616166 Lower flange 1
70 86384278 Washer 1
80 86373123 O’Ring 2
90 86384260 Threaded plug 1
100 86349875 O’Ring 3
110 86349867 Threaded plug 1
120 86356128 Plug 1
130 86356136 Ring 1
140 86424280 Slide 1
150 86583838 Threaded plug 1
160 86380904 Valve body 1
170 86380920 Valve 1
180 86380912 Lining 1
190 86231644 Pin 1
200 86238466 Seal 2
210 86355500 Toggle joint 1
220 86352481 Seal 1
230 86374444 Hose 1

Montabert V45 Slide and Hydraulic Connection Parts

Item Part No. Description Qty
240 86412301 Threaded plug 1
250 86349875 O’Ring 1
260 86366432 Washer 15
270 86362738 Pin 1
280 86255825 Spring 1
290 86371853 Slide Quarry 1
290 86676376 Slide tunnel 1
300 86741451 Toggle joint 1
310 86386505 Threaded plug 1
320 86223179 O’Ring 2
330 95299434 Screw 4
340 86332244 SAE Half flange 2
350 86340957 Collar 1
360 86284312 O’Ring 1
370 86632577 Flange 1
380 86279130 O’Ring 1
390 86598026 Threaded plug 1
400 86349875 O’Ring 1
410 86598018 Lining 1
420 86381035 Seal 1
430 86381019 Slide 1
440 86741451 Toggle joint 1
450 86386505 Threaded plug 1
460 86223179 O’Ring 2
470 95299434 Screw 4
480 86332244 SAE Half flange 2
490 86340957 Collar 1
500 86284312 O’Ring 1
510 86632577 Flange 1
520 86279130 O’Ring 1

Montabert V45 Back Head and Distribution Parts

Item Part No. Description Qty
530 86502507 Back-head 1
540 86373115 Additional thread 8
550 86371846 Lining 1
560 86362704 Ring 1
570 86389954 Threaded plug 1
580 86352481 Seal 1
590 86643376 Valve 2
600 86616885 Valve 1
610 86262656 O’Ring 1
620 86352481 Seal 5
630 86355906 Seal 3
640 86392115 O’Ring 4
650 86349990 Seal 2
660 86384955 Distribution box 1
670 86627486 Distribution 1
680 86616448 Plunger 1
690 86384971 Valve 1
700 86278561 O’Ring 1
710 86350006 Pin 1
720 86564762 Cylinder head 1
730 86480738 Ring 1

Montabert V45 Piston and Cylinder Parts

Item Part No. Description Qty
740 86383817 Thrust piston 1
750 86623741 Strike piston 1
760 86692977 Pin 1
770 86709979 Valve 1
780 86223740 O’Ring 1
790 86664513 Cylinder 1
800 86656410 O’Ring 1
810 86373156 Seal 1
820 86373149 O’Ring 2
830 86692977 Pin 1
840 86606951 Ballseating 1
850 86285343 Ball 1
860 86353547 Spring 1
870 86703618 Spacer pack 1
880 86596327 Shank thrust 1
890 86384245 Seal 2

Montabert V45 Front Guide and Tool Socket Parts

Item Part No. Description Qty
900 86692977 Pin 1
910 86717964 Front guide 1
920 86474897 Upper socket 1
930 86475167 Pin 1
940 86228962 O’Ring 1
950 86616109 Lower socket 1
960 86616117 O’Ring 2
970 86509940 Ring 1
980 86565231 Seal 1
990 86585254 Ring 1
1000 86636115 Retaining pin 2
1010 86613825 O’Ring 2
1020 86621190 Screw 4
1030 86621208 Ring 1
1040 86603917 Nut 4

Montabert V45 Housing Parts

Item Part No. Description Qty
10 86741022 Complete housing 1
20 86741030 Housing, includes: 1
20A 86250065 Thread 2
20B 86614039 Plastic plug 2
20C 86603180 Hoisting ring 1
20D 86741063 Plastic guiding slipper 2
20E 86741071 Plastic guiding slipper 2
20F 86715208 Fixing pin 6
20G 86741089 Fixing pin 6
20H 86220134 O’ring 12
30 86661568 Insonorization, includes: 1
30A 86616802 Spring 2
40 86629623 Plastic plug 4
50 86614856 Plastic plug 2
60 86616596 Rod support 2
70 86629557 Thrust housing 2
80 86661048 Retaining pin 2
90 86658648 Retaining pin 1
100 86646718 O’Ring 2
110 86576436 Screw 14
120 86634086 Washer (Pair) 28
130 86510005 Nut 14

Montabert V45 Cover and Protection Plate

Item Part No. Description Qty
10 86660131 Cover 1
20 86660115 Fixing stud 6
30 86660123 Protection plate 1
40 86638269 Plastic plug 1

Montabert V45 Front Plate and Progressive Stops

Item Part No. Description Qty
10 86653003 Progressive stop 8
20 86652872 Washer 16
30 86653052 Front plate 1
40 86652864 Cylindrical thrust 8
50 86653037 Stop plate 1
60 86653292 O’Ring 1
70 86653094 Protection plate 1
80 86389079 Plastic plug 1

Montabert V45 Dampers

Item Part No. Description Qty
10 86510112 Screw 8
20 86510146 Support disk 1
30 86616604 Dampener 1
40 86510310 Screw 8
50 86510286 Support disk 1
60 86385606 Dampener 1

Montabert V45 Tools: Chisel, Moil Point and Blunt

Item Part No. Description Qty
10 86608130 Chisel – DEG 1
20 86604931 Long chisel – DEG 1
30 86492246 Moil point 1
40 86593522 Long moil point 1
50 86492253 Blunt 1
60 86663093 Chisel – DEG 20° 1
A 86709839 Chisel – SG 1
B 86596749 Pyramidal point 1

Montabert V45 Lubrication Options

Item Part No. Description Qty
10 86667060 Lubrication station 1
20 86383759 Lubrication station 1
30 86615614 On-board greasing kit 1
40 86372505 Pressurization kit 1
100 86652054 Checking kit 1

Montabert V45 Lubrication Station 86667060: Tank Parts

Item Part No. Description Qty
10 86663960 Plug 1
20 86746294 Tank 1
30 86663952 Seal 1
40 86746302 Half flange 2
50 86222817 Tight ring 8
60 86448420 Screw 8
70 86663986 Square 1
80 86390614 Support 1
90 86488152 Screw 4
100 86225133 Nut 4
110 86667078 Grease pump 1
120 86668605 Label 1
130 86676186 Seal package 1
A – Seal 18/25×5,5 1
B – Seal 18/28×7,3 1
C – Seal 56,75/63,81×3,53 1
D – Seal 5,70/9,5×1,9 1
E – Seal 12,7/19×1,5 4
MSA 64 86357613 Oil 20 kg

Montabert V45 Lubrication Station 86383759: Grease Pump Parts

Item Part No. Description Qty
10 86379823 Tank 1
20 86386844 Cover 1
30 86379971 Spring 2
40 86383791 Piston 1
50 86380144 Proximity detector 1
60 86502275 Pump 1
70 86390614 Sheet 1
80 96702303 Screw 4
90 86225133 Nut 4
100 86383775 Case 1
A – Seal 18/25×5,5 1
B – Seal 18/28×7,3 1
C – Seal 56,75/63,81×3,53 1
D – Seal 5,70/9,5×1,90 1
E – Seal 12,7/19×1,5 4
F – Seal 17/24×2 1
G – Seal 160/180×15 2
H – Seal 10,46/21,12×5,33 1
EM 22 86383338 Grease 1
MSA 64 86357613 Oil 1

Montabert V45 Pin and Seal Set

Item Part No. Description Qty
10 86231644 Pin 1
20 86238466 Seal 2
30 86231651 Toggle joint 1
40 86352481 Seal 1
50 86237195 Bend 1
60 86302650 Coupling 1

Montabert V45 Easylub On-Board Grease Pump

Item Part No. Description Qty
10 86603313 Easylub lubrication station 1
20 86614070 Grease 2
30 86619681 Sticker 1
40 86742491 Adaptation on board grease pump 1
50 86614849 Screw 2
60 86384898 Washer 2
70 86614104 Hose 1
80 86623386 Adapter 1
90 86614120 Hose 1
100 86742079 Adapter 2
110 86614120 Hose 1
120 86260619 Clamp 5

Montabert V45 Tool Case and Documentation

Weight 35 lbs
