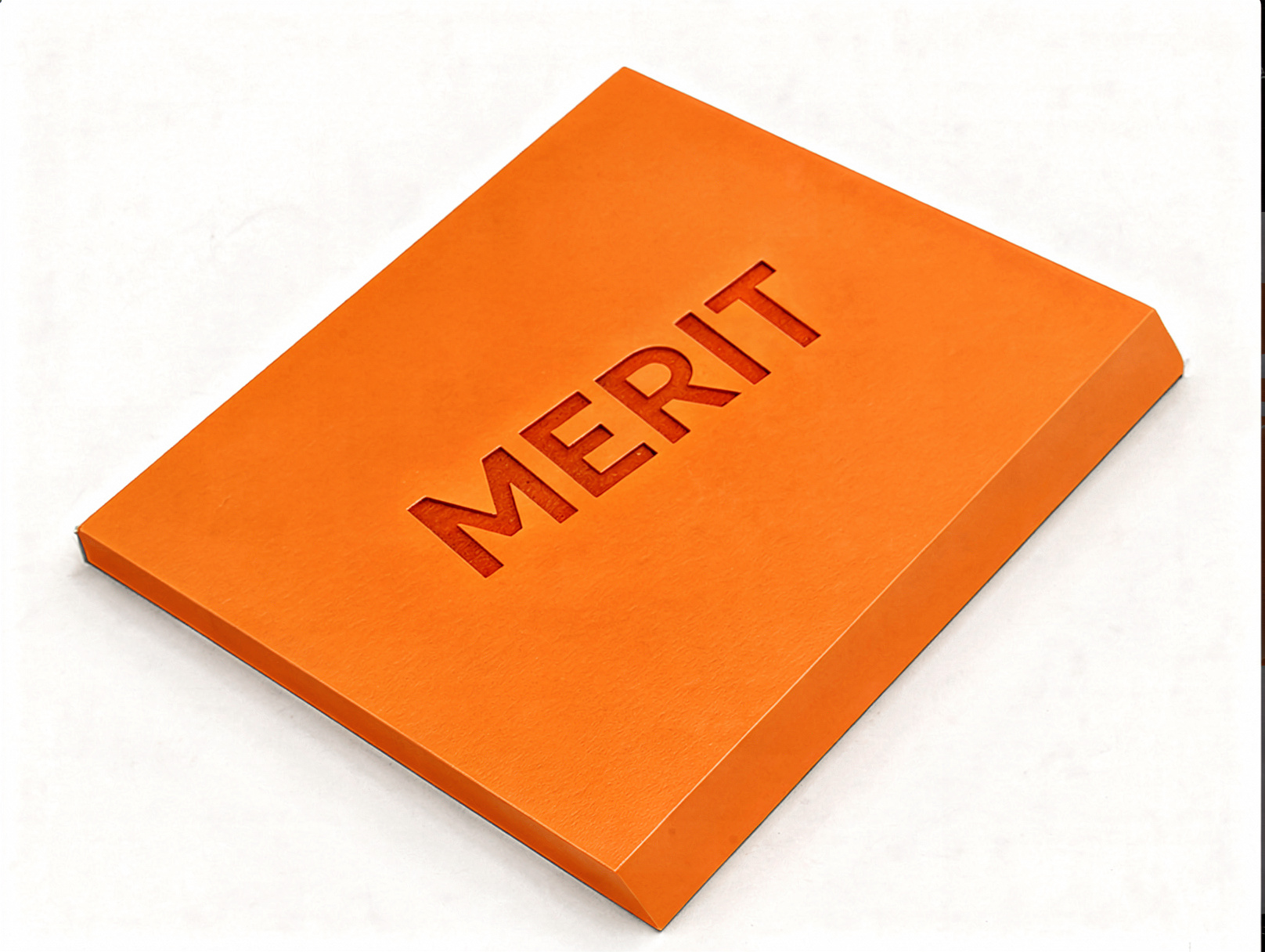

3362265215 placa lateral para Epiroc HB 4200

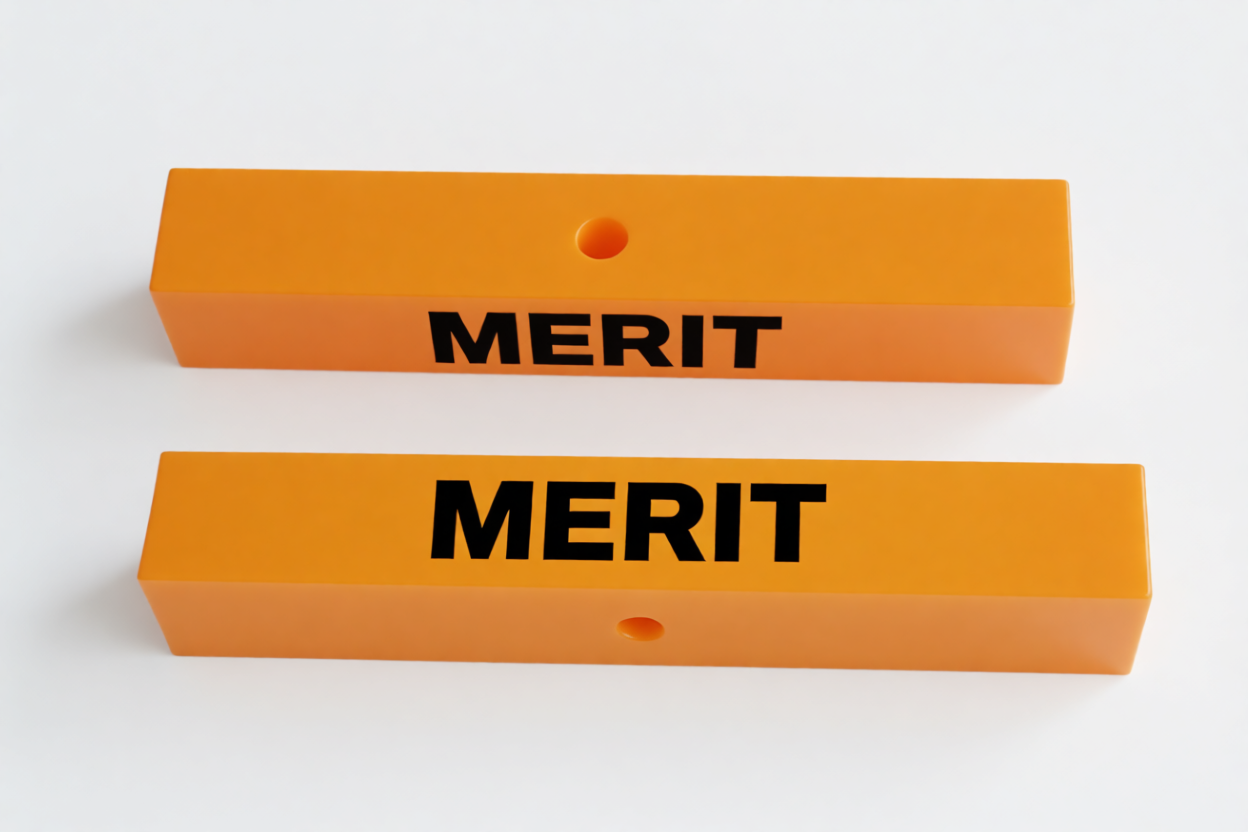

3361356925 amortiguador para Epiroc HB-4200
HYDRAULIC BREAKER PLASTIC PARTS, PADS & DAMPING COMPONENTS LIST atlas copco hb 4200 dp katalog.
Atlas Copco
HB Series
Model Part Number Description
HB 7000 3363 0895 17 Plastic Parts Kit
HB 7000 3362 2605 49 Elastic Pad
HB 7000 3362 2605 45 Shock Absorber
HB 7000 3362 2696 97 Guide Plate
HB 7000 3362 2626 67 Guide Plate
HB 7000 3362 2626 65 Guide Plate
HB 7000 3363 0933 83 Plate
HB 5800 3363 0878 07 Plastic Parts Kit
HB 5800 3363 0860 37 Elastic Pad
HB 5800 3363 0860 39 Shock Absorber
HB 5800 3363 0860 41 Guide Plate
HB 5800 / HB 4200 / HB 3600 / HB 3000 3362 2652 15 Guide Plate
HB 5800 3362 2626 67 Guide Plate
HB 5800 3363 0933 85 Plate
HB 4700 3363 1168 18 Plastic Parts Kit
HB 4700 3363 1027 59 Elastic Pad
HB 4700 3363 1027 55 Shock Absorber
HB 4200 3363 0948 85 Plastic Parts Kit
HB 4100 / HB 4200 3361 3567 89 Elastic Pad
HB 4100 / HB 4200 / HB 2500 3361 3569 25 Shock Absorber
HB 4200 3362 2698 03 Guide Plate
HB 4100 / HB 4200 / HB 4700 3363 0862 37 Plate
HB 4100 3363 1160 82 Plastic Parts Kit
HB 4700 / HB 4100 / HB 3100 3363 1153 60 Guide Plate
HB 4700 / HB 4100 / HB 3100 3363 1153 61 Guide Plate
HB 3600 3363 0948 87 Plastic Parts Kit
HB 3000 / HB 3100 / HB 3600 3361 8476 35 Elastic Pad
HB 3600 / HB 3100 3362 2697 97 Guide Plate
HB 3600 3362 2626 67 Guide Plate
HB 3600 3363 1003 45 Shock Absorber
HB 3600 3363 0863 99 Plate
HB 3100 3363 1167 97 Plastic Parts Kit
HB 3100 / HB 2000 3363 1040 73 Shock Absorber
HB 3000 / HB 3100 3363 0863 99 Plate
HB 3000 3363 0948 84 Plastic Parts Kit
HB 3000 / HB 2200 / MB 1650 / MB 1500 3361 8476 37 Shock Absorber
HB 2500 3363 1159 41 Plastic Parts Kit
HB 2500 3363 0938 79 Elastic Pad
HB 2500 3363 1153 62 Guide Plate
HB 2500 3363 1153 63 Guide Plate
HB 2500 3363 0938 77 Plate
HB 2200 3363 0948 83 Plastic Parts Kit
HB 2200 3361 8498 05 Elastic Pad
HB 2200 3362 2696 85 Guide Plate
HB 2200 3362 2640 51 Guide Plate
HB 2200 3363 0933 87 Plate
HB 2000 3363 1065 98 Plastic Parts Kit
HB 2000 3363 1040 71 Elastic Pad
HB 2000 3363 1059 35 Guide Plate
MB Series
Model Part Number Description
MB 1700 3363 0859 40 Plastic Parts Kit
MB 1700 3363 0334 67 Elastic Pad
MB 1700 3363 0334 65 Shock Absorber
MB 1700 3363 0357 95 Guide Plate
MB 1700 3363 0357 93 Guide Plate
MB 1700 3363 0841 99 Guide Plate
MB 1650 3363 1204 72 Plastic Parts Kit
MB 1650 3363 1181 81 Elastic Pad
MB 1650 3363 1182 96 Guide Plate
MB 1650 3363 1159 69 Guide Plate
MB 1650 3363 1181 82 Guide Plate
MB 1600 3363 0872 38 Set of Plastic Parts
MB 1600 3363 8476 83 Elastic Pad
MB 1600 / MB 1200 3361 8476 85 Shock Absorber
MB 1600 3362 2697 05 Guide Plate
MB 1500 3363 1153 36 / 3363 0948 14 Plastic Parts Kit
MB 1500 / MB 1200 3363 0339 57 Elastic Pad
MB 1500 3363 0991 97 Guide Plate
MB 1500 3363 1443 21 Guide Plate
MB 1500 3363 0991 93 Guide Plate
MB 1200 3363 0701 26 Plastic Parts Kit
MB 1200 3362 2696 31 Guide Plate
MB 1200 3363 0679 19 Guide Plate
MB 1200 3363 0679 21 Guide Plate
MB 1000 3363 0879 19 Plastic Parts Kit
MB 1000 3363 0828 99 Elastic Pad
MB 1000 3361 8522 37 Shock Absorber
MB 1000 3363 0844 33 Guide Plate
MB 1000 / MB 750 3363 0842 31 Guide Plate
MB 1000 3363 0828 97 Guide Plate
MB 750 3363 1034 72 Plastic Parts Kit
MB 750 3363 0928 57 Elastic Pad
MB 750 3361 8523 37 Shock Absorber
MB 750 3363 1007 37 Guide Plate
MB 750 3363 0928 61 Guide Plate
Krupp – HM Series
Model Part Number Description
HM 2500 1356925 Shock Absorber
HM 2500 1356789 Elastic Pad
HM 2500 2269803 Guide Plate
HM 2500 2265215 Guide Plate
HM 2300 / HM 2100 / HM 2000 / HM 1500 3361 8476 37 Damping Element
HM 2300 / HM 2100 3361 8476 35 Elastic Pad
HM 2300 / HM 2100 3362 2697 97 Guide Plate
HM 2300 / HM 2100 3362 2652 15 Guide Plate
HM 2000 / HM 1500 3361 8498 05 Elastic Pad
HM 2000 / HM 1500 3362 2640 51 Guide Plate
HM 2000 / HM 1500 / HM 960 3362 2696 85 Damping Element
HM 1000 3363 0334 65 Shock Absorber
HM 1000 3363 0334 67 Elastic Pad
HM 1000 3363 0357 93 Guide Plate
HM 1000 3363 0357 95 Guide Plate
HM 960 / HM 901 3361 8476 83 Elastic Pad
HM 960 / HM 901 3361 8476 87 Guide Plate
HM 901 3361 8476 85 Shock Absorber
HM 780 3363 0339 57 Elastic Pad
HM 780 3363 0679 19 Guide Plate
HM 780 3363 0679 21 Guide Plate
HM 780 / HM 720 3362 2696 31 Guide Plate
HM 720 / HM 560 / HM 550 / HM 580 3361 8522 37 Shock Absorber
HM 720 3361 8522 35 Elastic Pad
HM 560 / HM 550 / HM 580 3362 2622 15 Elastic Pad
HM 560 3363 0325 77 Guide Plate
HM 550 / HM 580 3363 0325 93 Guide Plate
TLAS COPCO HB 3000 / HB 3100 – PARTS LIST
No Model Part Number Description
1 HB 3000 3363 0660 10 Seal Kit
2 HB 3000 / HB 3100 3361 3290 22 Diaphragm
3 HB 3000 3363 0948 84 Plastic Parts Kit
4 HB 3000 / HB 3100 3361 8476 35 Elastic Pad
5 HB 3000 3361 8476 37 Shock Absorber
6 HB 3000 3362 2697 97 Guide Plate
7 HB 3000 3362 2652 15 Guide Plate
8 HB 3000 / HB 3100 3363 0863 99 Plate
9 HB 3000 3363 0846 93 Tensioning Bolt Kit
10 HB 3000 / HB 3100 3361 8477 11 Percussion Piston
11 HB 3000 / HB 3100 3363 1034 06 Lower Breaker Part (Steel)
12 HB 3000 / HB 3100 3361 3322 27 Retainer Bar
13 HB 3000 / HB 3100 3362 2615 41 Bolt
14 HB 3000 / HB 3100 3362 2629 21 Plug
15 HB 3000 / HB 3100 3363 0690 81 Buffer Ring
16 HB 3000 / HB 3100 3363 0696 63 Wear Bush
17 HB 3000 / HB 3100 3363 0886 55 Wear Bush (Steel)
18 HB 3000 / HB 3100 3361 8543 47 Bolt
19 HB 3000 / HB 3100 3362 2604 33 Locking Bush
20 HB 3000 / HB 3100 3361 8543 63 Locking Bush
21 HB 3000 3363 0669 72 Wiper
22 HB 3000 3363 0886 45 Base for Wiper
23 HB 3000 / HB 3100 3363 0872 58 Moil Point
24 HB 3000 / HB 3100 3363 0859 76 Chisel (Cross)
25 HB 3000 / HB 3100 3363 0872 52 Blunt Tool
26 HB 3100 3363 1215 78 Seal Kit
27 HB 3100 3363 1167 97 Plastic Parts Kit
28 HB 3100 3363 1040 73 Shock Absorber
29 HB 3100 3363 1153 60 Guide Plate
30 HB 3100 3363 1153 61 Guide Plate
ATLAS COPCO HB 3600 – PARTS LIST
No Model Part Number Description
1 HB 3600 3363 1033 34 Seal Kit
2 HB 3600 3361 3290 22 Diaphragm
3 HB 3600 3363 0948 87 Plastic Parts Kit
4 HB 3600 3361 8476 35 Elastic Pad
5 HB 3600 3362 2697 97 Guide Plate
6 HB 3600 3362 2652 15 Guide Plate
7 HB 3600 3362 2626 67 Guide Plate
8 HB 3600 3363 1003 45 Shock Absorber
9 HB 3600 3363 0863 99 Plate
10 HB 3600 3363 1033 54 Tensioning Bolt Kit
11 HB 3600 3363 1045 19 Tensioning Bolt
12 HB 3600 3363 1033 30 Percussion Piston
13 HB 3600 3363 0936 53 Washer
14 HB 3600 3363 1034 27 Lower Breaker Part Kit (Steel)
15 HB 3600 3363 1045 21 Retainer Bar
16 HB 3600 3362 2615 41 Bolt
17 HB 3600 3363 2629 21 Plug
18 HB 3600 3363 1045 27 Buffer Ring
19 HB 3600 3363 1045 29 Wear Bush
20 HB 3600 3363 1045 51 Wear Bush (Steel)
21 HB 3600 3361 8543 47 Bolt
22 HB 3600 3362 2604 33 Locking Bush
23 HB 3600 3363 1045 45 Wiper
24 HB 3600 3363 1045 43 Base for Wiper
25 HB 3600 3363 1033 07 Moil Point
26 HB 3600 3363 1033 08 Chisel (Cross)
27 HB 3600 3363 1045 49 Blunt Tool
HB 2200 Parts
| Model | Part | Part No. |
|---|---|---|
| HB 2200 | Elastic Pad | 3361 8498 05 |
| HB 2200 | Shock Absorber | 3368 476 37 |
| HB 2200 | Guide Plate | 3362 264 051 |
| HB 2200 | Wear Bush | 3363 0885 07 |
| HB 2200 | Wear Bush | 3363 0691 83 |
| HB 2200 | Impact Ring Set | 3363 0690 79 |
| HB 2200 | Retainer Bar | 3360 9819 27 |
| HB 2200 | Bolt | 3361 8543 47 |
| HB 2200 | Plug | 3362 2629 25 |
| HB 2200 | Locking Bush | 3363 8543 63 |
HB 2500 Parts
| Model | Part | Part No. |
|---|---|---|
| HB 2500 | Plate | 3363 0938 77 |
| HB 2500 | Elastic Pad | 3363 0398 79 |
| HB 2500 | Guide Plate | 3363 1153 62 |
| HB 2500 | Shock Absorber | 3361 3569 25 |
| HB 2500 | Wear Bush | 3363 0977 23 |
| HB 2500 | Impact Ring Set | 3363 0977 21 |
| HB 2500 | Bolt | 3361 8543 47 |
| HB 2500 | Retainer Bar | 3360 9819 27 |
| HB 2500 | Locking Bush | 3361 8543 63 |
| HB 2500 | Plug | 3361 2629 25 |
No Product Name Part Number
1 Plastic Parts Kit 3363106598
2 Elastic Pad 3363104071
3 Guide Plate 3363105935
4 Shock Absorber 3363104073
5 Diaphragm 3362261647
6 Impact Ring 3363109237
7 Wear Bush 3363109239
8 Wear Bush 3363109241
9 Bolt 3361854347
10 Seal Kit Complete 3363106906
11 Moil Point 3363105951
12 Diaphragm 3361329022
13 Plastic Parts Kit 3363116082
14 Elastic Pad 3361356789
15 Shock Absorber 3361356925
16 Guide Plate 3363115360
17 Guide Plate 3363115361
18 Plate 3363086237
19 Tensioning Bolt Kit 3363113270
