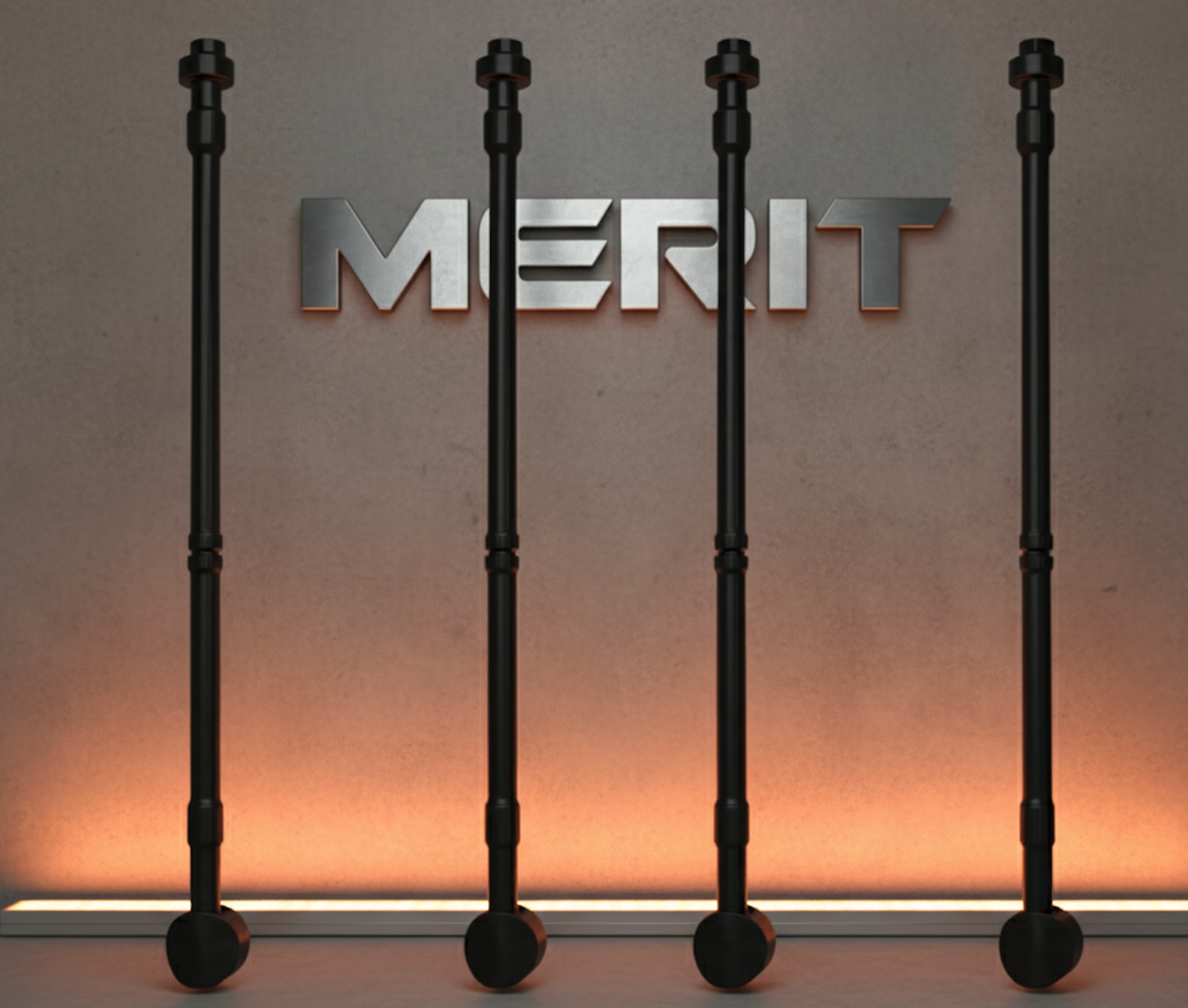

CAT 160 Tie Rod — Part No. 185-0710 / 185-0711
Looking for a reliable replacement tie rod for your CAT 160 hydraulic breaker? MERIT delivers OEM-quality aftermarket parts built to last.
🔩 Part Numbers: 185-0710 / 185-0711 📏 Length: 53.1 in ⭕ Diameter: 3.46 in ⚖️ Weight: 70.5 lb
Built from high-grade alloy steel with precision machining, this tie rod is engineered to withstand the toughest job site conditions. Direct OEM-compatible replacement — no modifications needed.
✅ OEM-quality replacement ✅ Precision CNC machined ✅ Heat treated for superior hardness
📩 Contact us for pricing and availability.
| Tool | Part Number | Upper Dia (M) | Lower Dia (P) | Length | Working Length | Weight |
|---|---|---|---|---|---|---|
| Chisel Tool (1) | 188-3495195 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1405.5 mm (55.31 in) | 740.3 mm (29.13 in) | 197.7 kg (434 lb) |
| Moil Tool (2) | 188-3499199 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1405.5 mm (55.31 in) | 740.3 mm (29.13 in) | 197.7 kg (434 lb) |
| Blunt Tool (3) | 188-3501301 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1255.5 mm (49.41 in) | 590.3 mm (23.22 in) | 187.7 kg (412 lb) |
| Pyramid Point Tool (4) | 188-3500300 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1405.5 mm (55.31 in) | 740.3 mm (29.13 in) | 197.7 kg (434 lb) |
| Super Blunt Tool (5) | 188-3502302 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1250.5 mm (49.21 in) | 585.5 mm (23.03 in) | 214.1 kg (471 lb) |
| Soft Rock Chisel Tool (6) | 249-5132132 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1250.0 mm (49.21 in) | 585.5 mm (23.03 in) | 197.7 kg (434 lb) |
| Hard Rock Chisel Tool (7) | 249-5133133 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1405.5 mm (55.31 in) | 740.3 mm (29.13 in) | 206.3 kg (454 lb) |
| Long Moil Tool (8) | 217-3379379 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1505.5 mm (59.25 in) | 840.3 mm (33.07 in) | 221.1 kg (487 lb) |
| Long Chisel Tool (9) | 217-3381381 | 158.3 mm (6.22 in) | 160.3 mm (6.30 in) | 1505.5 mm (59.25 in) | 840.3 mm (33.07 in) | 222.2 kg (489 lb) |
