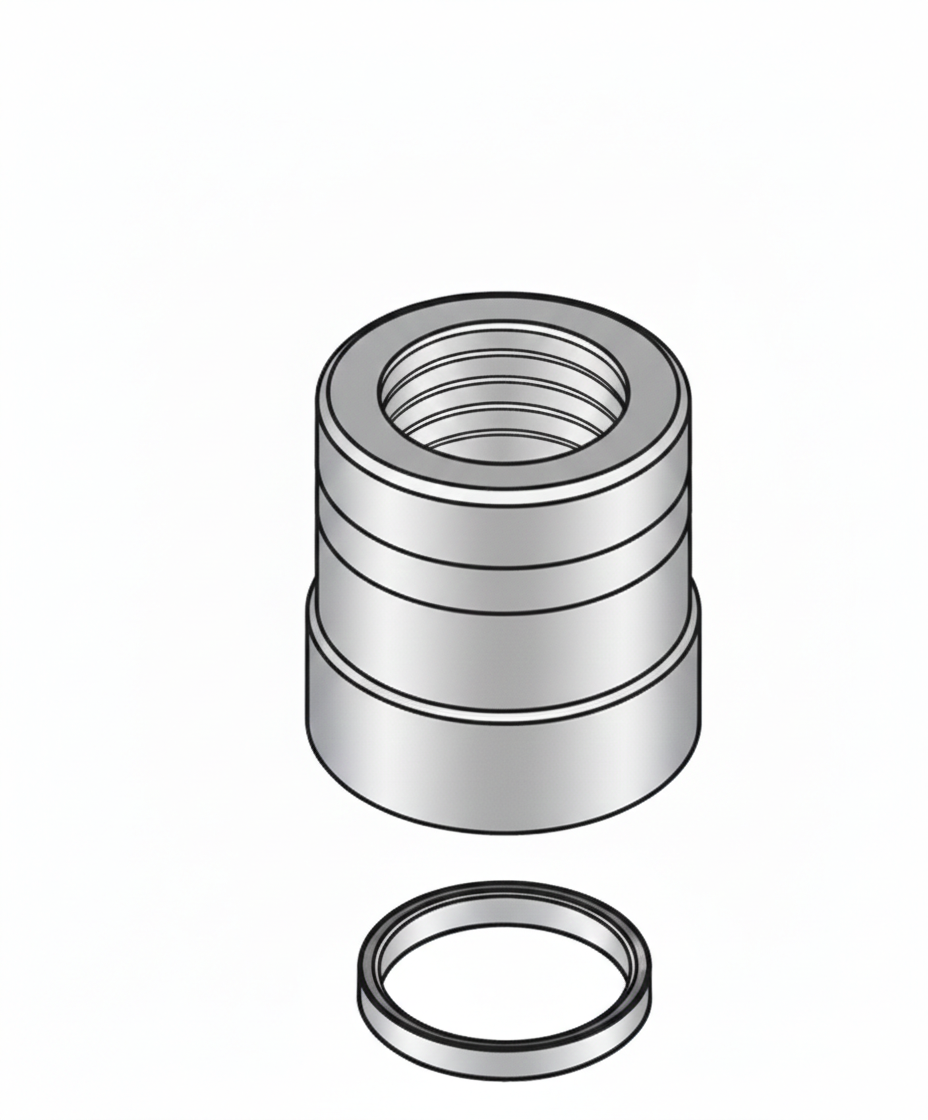

Rammer S83 Compatible Lower Tool Bushing (Part No: 102157) – Maximum Durability.
Elevate Your Breaker Performance with MERIT Quality.
Specially engineered for Rammer S83 hydraulic breakers, the Part No. 102157 Lower Tool Bushing is designed to protect your breaker’s housing and tool under the most demanding field conditions.
🛠 Technical Specifications
Our product is manufactured with precision tolerances to meet or exceed OEM standards:
-
Compatible Model: Rammer S83
-
Part Number: 102157
-
Length: 225 mm
-
Diameter: 190 mm
- Weight: 30kg
-
Material: High-strength Alloy Steel SAE 4340
-
Treatment: Specialized heat treatment for superior wear resistance
💎 Why Choose MERIT Lower Tool Bushings?
1. Superior Material Quality (SAE 4340)
The SAE 4340 alloy steel we use provides high impact resistance and excellent toughness. This means the bushing is far more resistant to cracking and intense friction than standard alternatives.
2. Perfect Fit Engineering
Our engineering team ensures a 100% compatible fit for the Rammer S83 series through millimetric precision. This guarantees easy installation and minimum downtime on the job site.
3. Extended Equipment Lifespan
A high-quality lower bushing maintains the correct alignment between the piston and the tool. By reducing stress on the main housing, it significantly extends the overall life of your hydraulic hammer.
🚀 Power in the Field, Reliability in Operation
We know that downtime is costly. MERIT wear parts ensure your breaker keeps working without interruption in heavy-duty demolition, mining, and construction projects.
“Quality is not a coincidence; it is the combination of right engineering and the right materials.”
📞 Request a Quote Today!
Take advantage of our competitive pricing and fast delivery for Rammer S83 replacement parts.
-
Stock Status: In Stock
-
Shipping: Worldwide fast shipping
-
Contact: info@meritautomotive.com
Housing Unit S 83
Housing (includes wear plates, pins, lifting eye, and screws): 103194
Wear plate: 300208
Pin: 103698
Pin: 103699
Lifting eye: 90705
Hex. screw: 900026
Pad: 300978
Buffer: 300979
Lock nut: 90507
Washer: 90511
Hex. screw: 90589
Label set (Kit): 200292
Accumulator S 83
Accumulator (includes items 1.1-1.9): 30771
Accumulator bottom: 10547
Accumulator cover: 10546
Membrane: 30766
Accumulator screw: 40416
Filling plug: 40368
Seal: 41357
Shield plug: 41356
Usit-ring: 90056
Parallel pin: 90304
Accumulator screw: 41335
Spacer plate: 101070
Main Valve S 83
Main valve bushing: 200246
Main spool: 300418
Spool: 40111
Spool: 40112
Cover: 30777
Cover: 30776
Seal: 90020
Lock washer: 90597
Hex. screw: 90514
O-ring: 90005
Check Valve S 83
Check valve (includes items 1.1-1.8): 300420
Check valve housing: 300417
Check valve: 90532
Spring ring: 90302
Flange plug: 90403
O-ring: 90017
O-ring: 90004
Lock washer: 91012
Hex. screw: 90513
Pressure Control Valve S 83
Pressure control valve (includes items 1.1-1.10): 300421
Cover: 300416
Valve housing: 300419
Spool: 30792
Spring: 90104
Spring guide: 40275
Shim plate: 42364
Shim plate: 42365
Shim plate: 42366
Seal: 41374
Seal: 41375
Seal: 41376
O-ring: 90083
Tie Rods & Body Parts S 83
Tie rod: 200177
Tie rod nut: 300291
Lock plate: 41090
Rubber ring: 40586
O-ring: 901025
Valve body: 100286
Cylinder: 100288
Seal carrier: 11214
Piston: 10606
Breather (includes O-ring): 101700
Flange plug: 90401
Flange plug: 90444
Seal: 41350
Seal: 41352
Seal: 911021
Seal: 911001
Wiper: 41354
Wiper: 913001
O-ring: 90076
Hex. socket screw: 90555
Flange: 400485
Front Head S 83
Front head: 100336
Thrust ring: 20838
Upper tool bushing: 300292
Tool retaining pin: 400358
Wedge: 40110
Retaining pin: 400360
Split pin: 901132
Retaining pin: 400361
Split pin: 904006
Plug: 40116
O-ring: 90000
Spring: 920007
Grease nipple: 90200
Split pin: 904007
Lower Tool Bushing & Seal Set
Lower tool bushing (includes seal): 102157
Seal: 102013
Seal set (Kit including all seals and wipers): 42415
